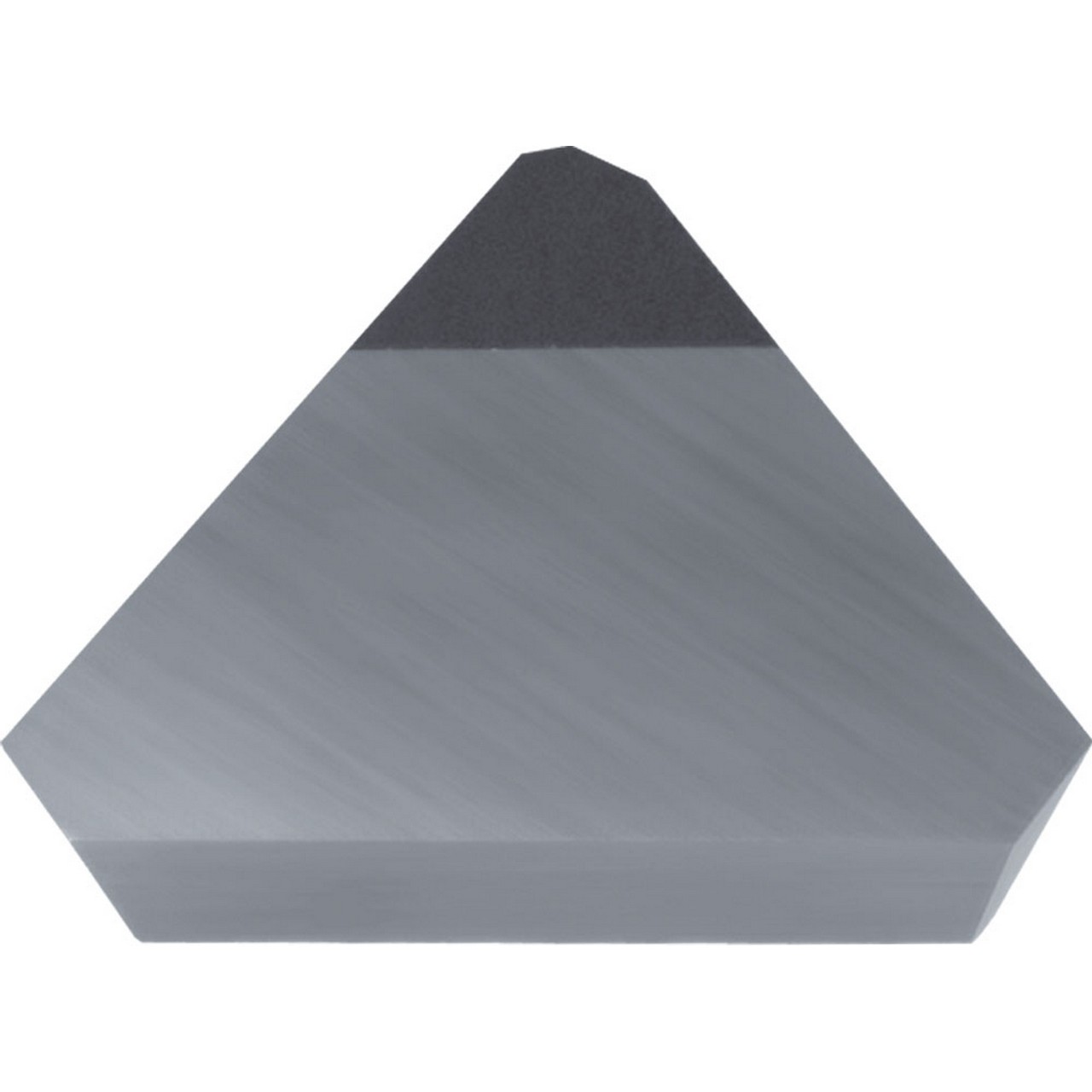

Kyocera Precision Tools TBE00260 | TEEN32PTFR KPD010 3/8" Circle Diameter x 1/8" Thickness Uncoated PCD Milling Insert

$248.74 $181.58
(You save $67.16)
Brand:
Kyocera Precision Tools
Insert Size:
32
Material:
PCD;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
SKU:
23224700
UPC:
Weight:
0.03 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
  • Insert for facing, shouldering, slotting
  • Sharp edge with 1 cutting edge
  • Good wear resistance and toughness, good grindability
  • Application: General purpose, high speed cutting of aluminum alloys, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics

Product Specifications
EDP NumberTBE00260
Insert Included Angle (Degree)60 Degree
Inscribed Circle (Inch)3/8"
[IC] Inscribed Circle (mm)9.525mm
[S] Thickness (Inch)1/8"
[S] Thickness (mm)3.18mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerPTFR
Coating ProcessUncoated

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
32
Material:
PCD;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
