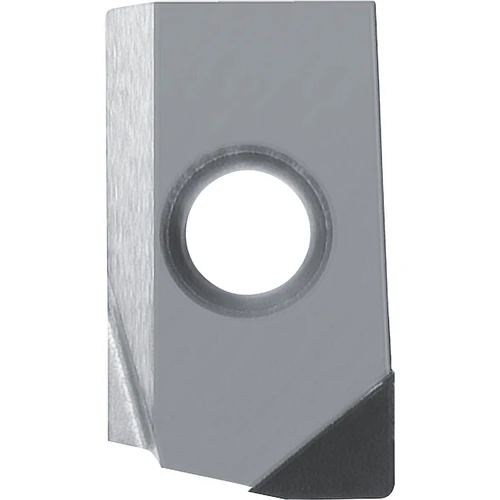

- Insert for facing, helical milling, shouldering, slotting
- Sharp edge with 1 cutting edge
- Super micro-grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
- Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
Product Specifications
| EDP Number | TBR00278 |
| [INSL] Insert Length (Decimal Inch) | 0.4528" |
| [INSL] Insert Length (mm) | 11.50mm |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.150" |
| [S] Thickness (mm) | 3.80mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | FR |
| Coating Process | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
11T308
Material:
PCD;Finish/Coating=Uncoated
Thickness (Decimal Inch):
0.1500"
Thickness (mm):
3.80mm
