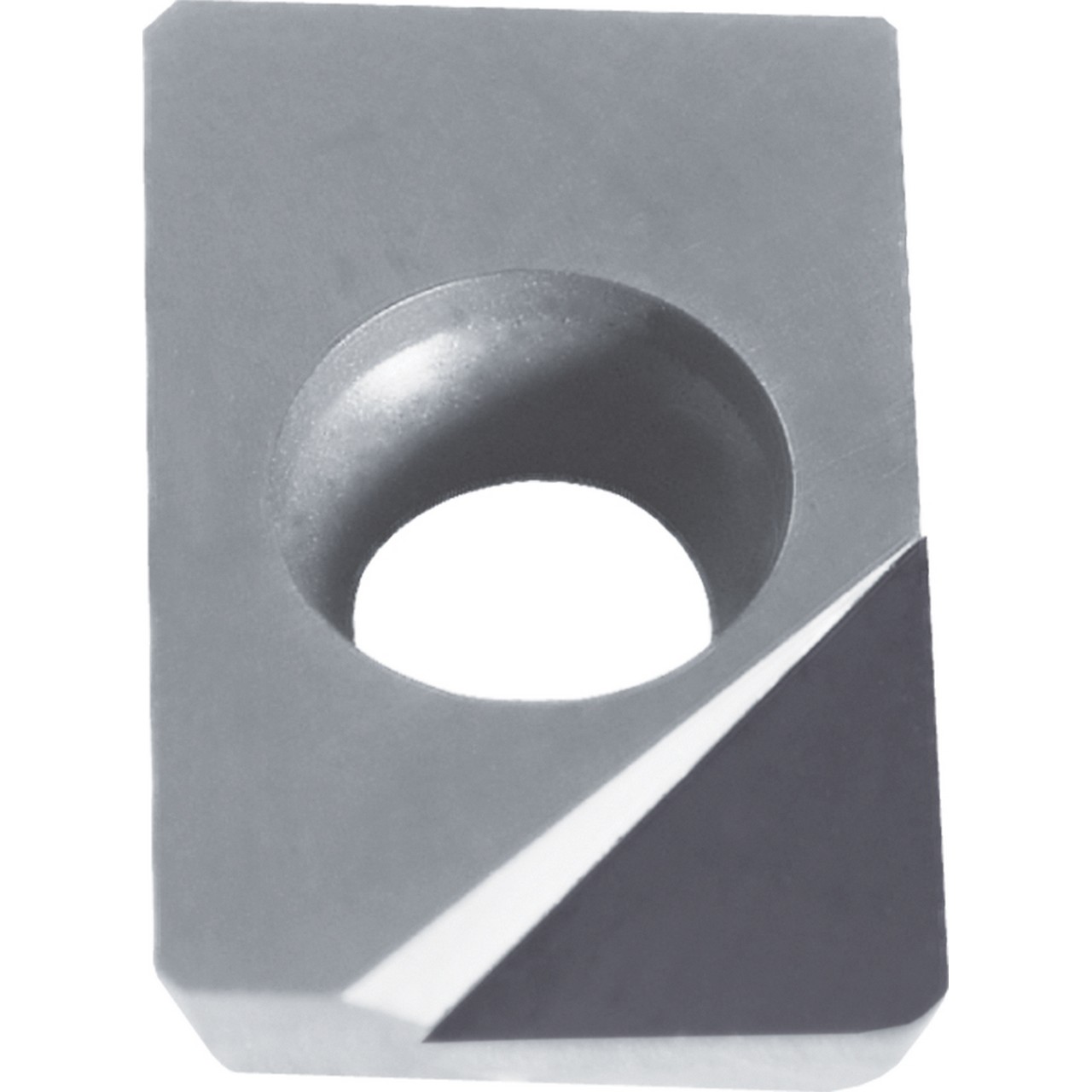

- Insert for facing, shouldering, slotting
- Sharp edge with 1 cutting edge
- Super micro-grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
- Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
Product Specifications
| EDP Number | TBR03200 |
| Inscribed Circle (Inch) | 3/8" |
| [IC] Inscribed Circle (mm) | 9.525mm |
| [RE] Corner Radius (Inch) | 0.008" |
| [RE] Corner Radius (mm) | 0.20mm |
| [S] Thickness (Inch) | 1/8" |
| [S] Thickness (mm) | 3.18mm |
| Application | Facing | Shouldering | Slotting |
| Chipbreaker | FRX |
| Coating Process | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
3205
Material:
PCD;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
