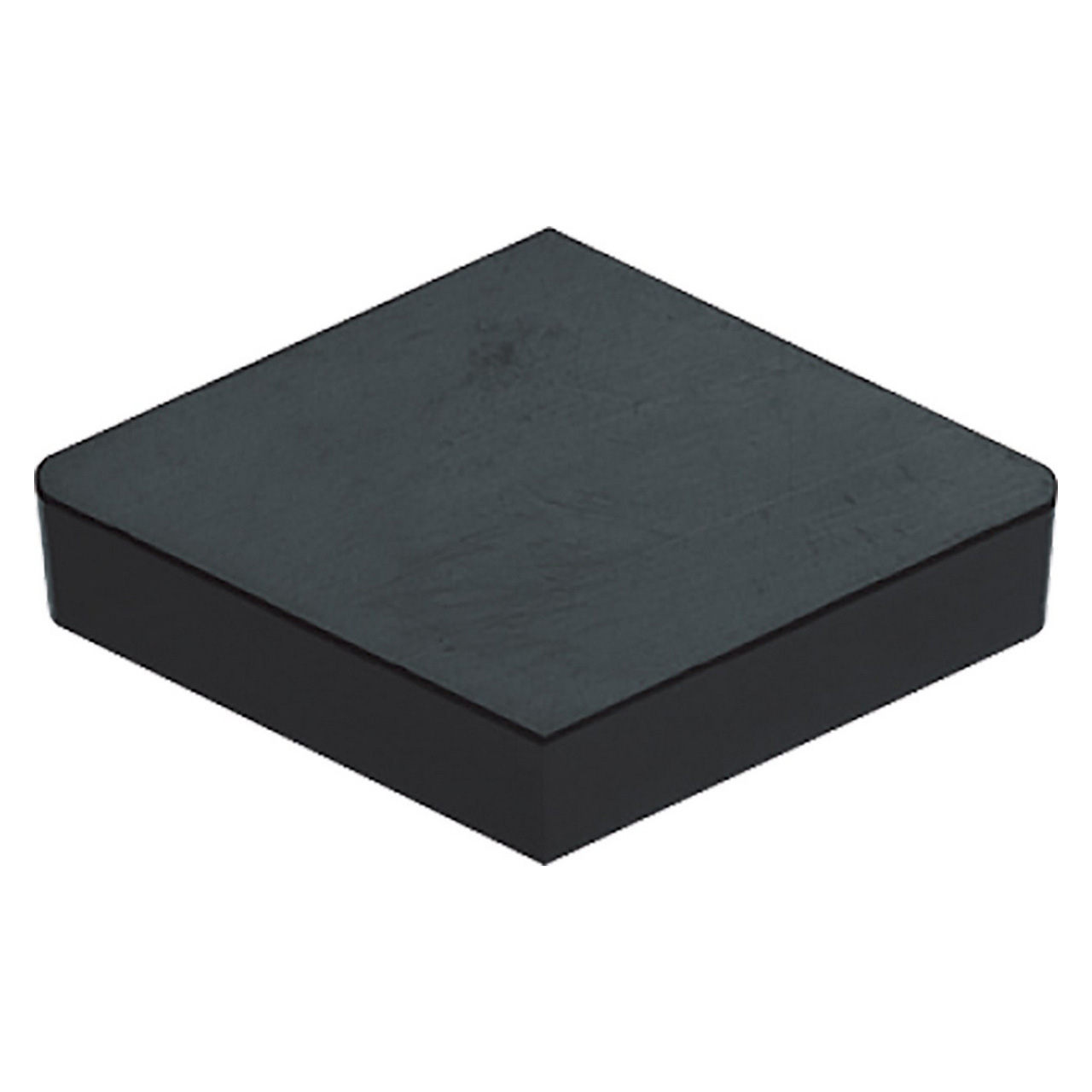

Features:
- Insert for external turning, copying, back turning
- 4 Cutting edges
- Aluminum oxide and titanium carbide ceramic (Al2O3+TiC)
- Application: Semi-roughing to finishing of steel, cast iron, and hard materials
Product Specifications
| EDP Number | TCR01000 |
| Inscribed Circle (Inch) | 1/2" |
| Inscribed Circle (mm) | 12.70mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (mm) | 0.80mm |
| Thickness (Inch) | 5/16" |
| Thickness (mm) | 7.94mm |
| Application | Back Turning | Copying | External Turning |
| Coating Process | Uncoated |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | A65 |
| Insert Holding Method | Clamp |
| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 452 |
| Material | Ceramic |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Gray Cast Iron (K) | Hardened Materials (H) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
DNG
Insert Size:
452
Material:
Ceramic;Inscribed Circle (Inch)=1/2"""
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
5/16"
Thickness (Decimal Inch):
0.3126"
Thickness (mm):
7.94mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
A65
