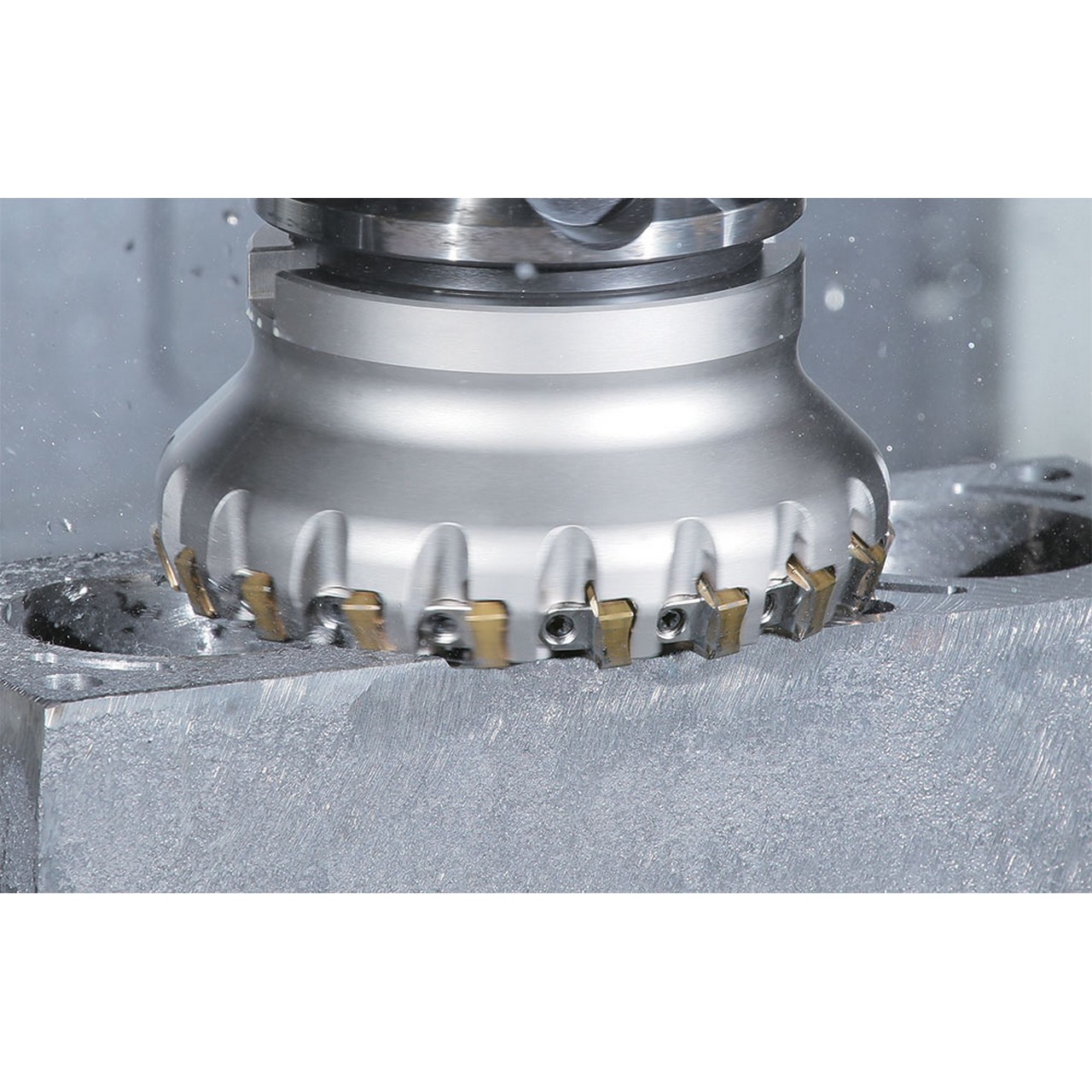

Kyocera Precision Tools TCY05300 | PNEG1106XNTRT00515 CS7050 0.256" Thickness x 0.6721" Insert Length CVD Coated Ceramic Milling Insert

$36.46 $25.52
(You save $10.94)
Brand:
Kyocera Precision Tools
Insert Size:
1106
Material:
Ceramic;Finish/Coating=CVD
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.50mm
SKU:
23226132
UPC:
Weight:
0.16 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, chamfering
  • Chamfered edge with 10 cutting edges
  • Silicon nitride ceramic (Si3N4) + CVD Coated Carbide (Special Al2O3 COAT)
  • Application: Finishing and continuous machining, and high speed and high efficient machining (with or without coolant)

Product Specifications
EDP NumberTCY05300
[INSL] Insert Length (Decimal Inch)0.6721"
[INSL] Insert Length (mm)17.07mm
[S] Thickness (Inch)0.256"
[S] Thickness (mm)6.50mm
ApplicationChamfering | Facing
ChipbreakerXNTR
Coating ProcessCVD
