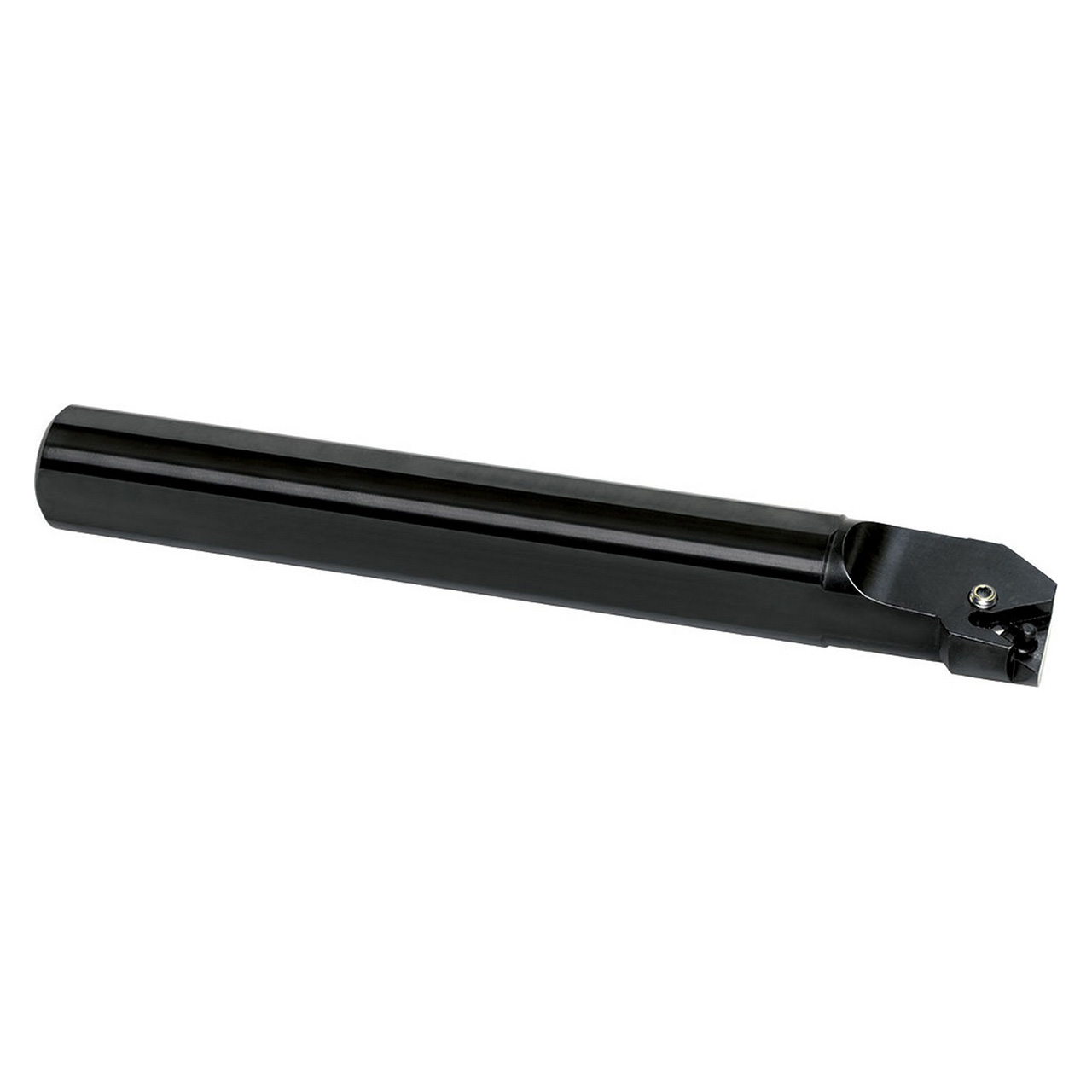

Features:
- ~6 (Axial), -17 (Radial) Rake angle general purpose boring bar
- Great for boring applications
- Compatible with Right-Hand TNMG33, TNGG33, TNGA33, TNMM33 inserts
Product Specifications
| EDP Number | THC08063 |
| Connection Diameter (Decimal Inch) | 0.7874" |
| Connection Diameter (mm) | 20.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.9843" |
| Minimum Bore Diameter (mm) | 25.00mm |
| Shank Height (Decimal Inch) | 0.7480" |
| Shank Height (mm) | 19.00mm |
| Tool Entering Angle ( Degree) | 93 Degree |
| Application | Boring |
| Bar Type | Steel Shank |
| Hand | Left Hand |
| Insert Holding Method | Lever Lock / Lock Pin |
| Insert Shape | 60 Degree Triangle |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...PTUN16
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=0.9843"""
Minimum Bore Diameter (mm):
25.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Through Coolant:
No
