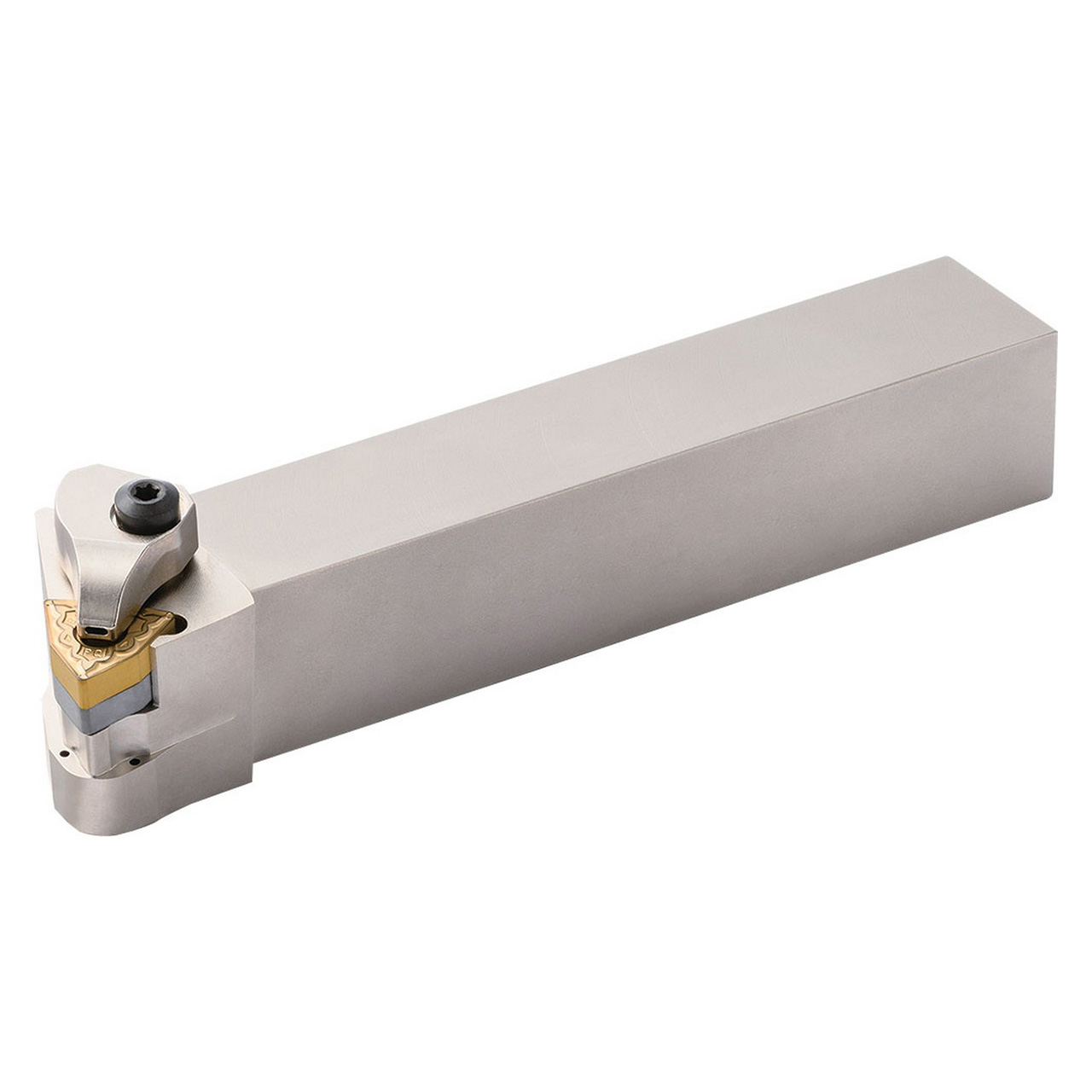

Kyocera Precision Tools THC14938 | DWLNR164DJCT 0.9843" Shank Width x 0.9843" Shank Height Steel Indexable Turning Toolholder

$280.07
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Toolholder Style:
DWLN-JCT
Rake:
Negative;Series=DBCJ
Lead Angle:
95°
Shank Width (Decimal Inch):
0.9843"
Shank Width (mm):
25.00mm
Shank Height (Decimal Inch):
0.9843"
Shank Height (mm):
25.00mm
SKU:
23230771
Weight:
1.85 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Application: External turning, facing
  • Double clamp insert holding design
  • Jet coolant-through system
  • Discharges coolant in three directions to improve chip control and lengthen tool life for a wide variety of workpieces including steel, hardened steel and difficult-to-cut material
  • Compatible with Right-Hand or neutral WN..43 style inserts
    •
    Product Specifications
    EDP NumberTHC14938
    Shank Width (mm)25.00mm
    Shank Height (Decimal Inch)0.9843"
    Shank Height (mm)25.00mm
    Tool Entering Angle ( Degree)95 Degree
    ApplicationExternal Turning | Facing
    Coolant Through (Yes/No)Yes
    HandRight Hand
    Insert Holding MethodDouble Clamp
    Insert Shape80 Degree Trigon
    MaterialSteel

    Warning:

    This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

    For more information, visit www.P65Warnings.ca.gov

    Brand:
    Kyocera Precision Tools
    Hand of Holder:
    Right-Hand
    Toolholder Style:
    DWLN-JCT
    Rake:
    Negative;Series=DBCJ
    Lead Angle:
    95°
    Shank Width (Decimal Inch):
    0.9843"
    Shank Width (mm):
    25.00mm
    Shank Height (Decimal Inch):
    0.9843"
    Shank Height (mm):
    25.00mm
