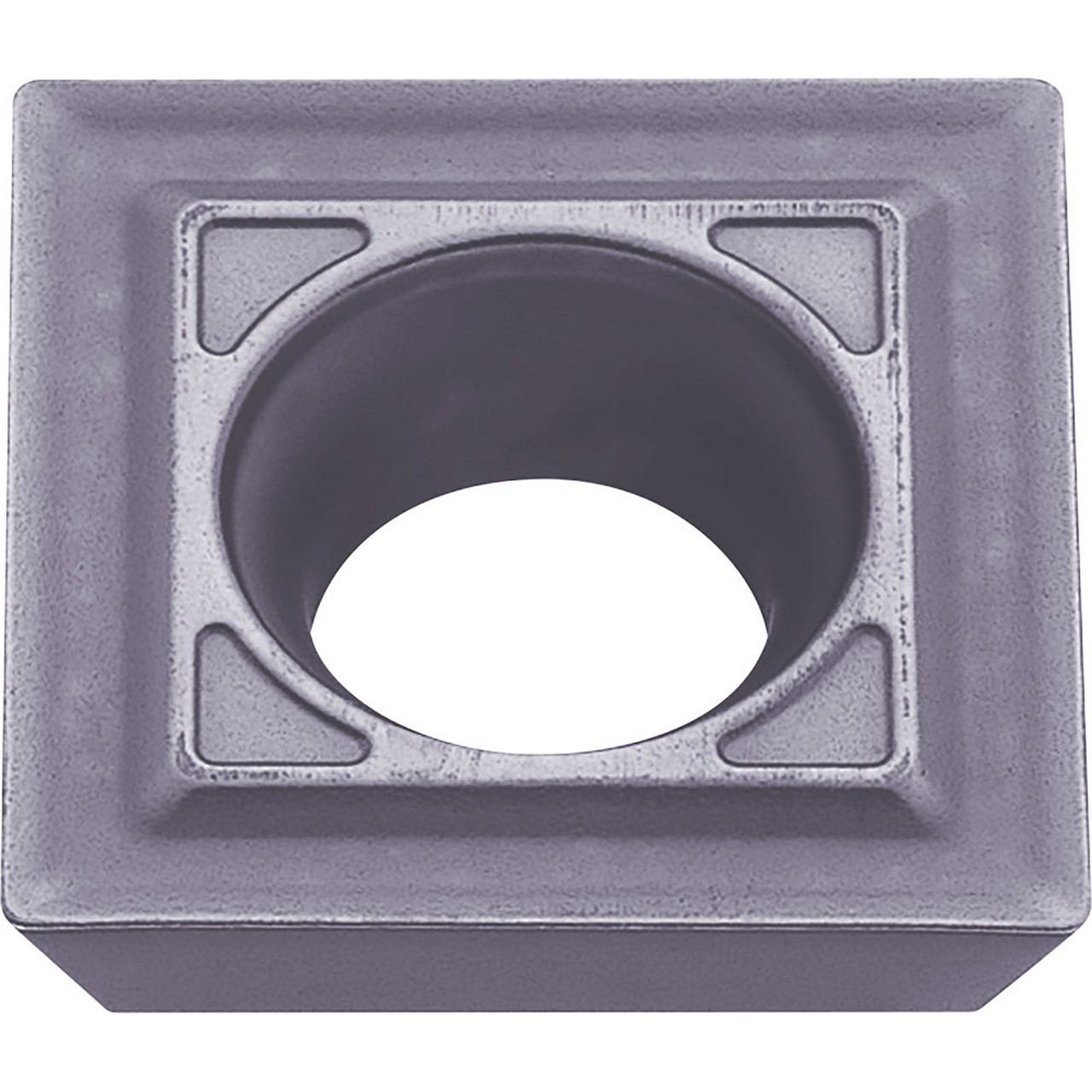

Kyocera Precision Tools TKB05218 | SDMT3181C PR1225 3/8" Circle Diameter x 0.109" Thickness PVD Coated Carbide Milling Insert

$25.74 $14.93
(You save $10.81)
Brand:
Kyocera Precision Tools
Insert Size:
3181
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.3800"
Inscribed Circle (mm):
9.525mm
Thickness (Decimal Inch):
0.1100"
Thickness (mm):
2.78mm
SKU:
23237549
UPC:
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for chamfering, countersinking, back chamfering, V-shape slotting
  • Low cutting force with 4 cutting edges
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
EDP NumberTKB05218
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)3/8"
[IC] Inscribed Circle (mm)9.525mm
[RE] Corner Radius (Inch)1/64"
[RE] Corner Radius (mm)0.40mm
[S] Thickness (Inch)0.109"
[S] Thickness (mm)2.78mm
ApplicationBack Chamfering | Chamfering | Countersinking | V-Shape Slotting
ChipbreakerC
Coating ProcessPVD
