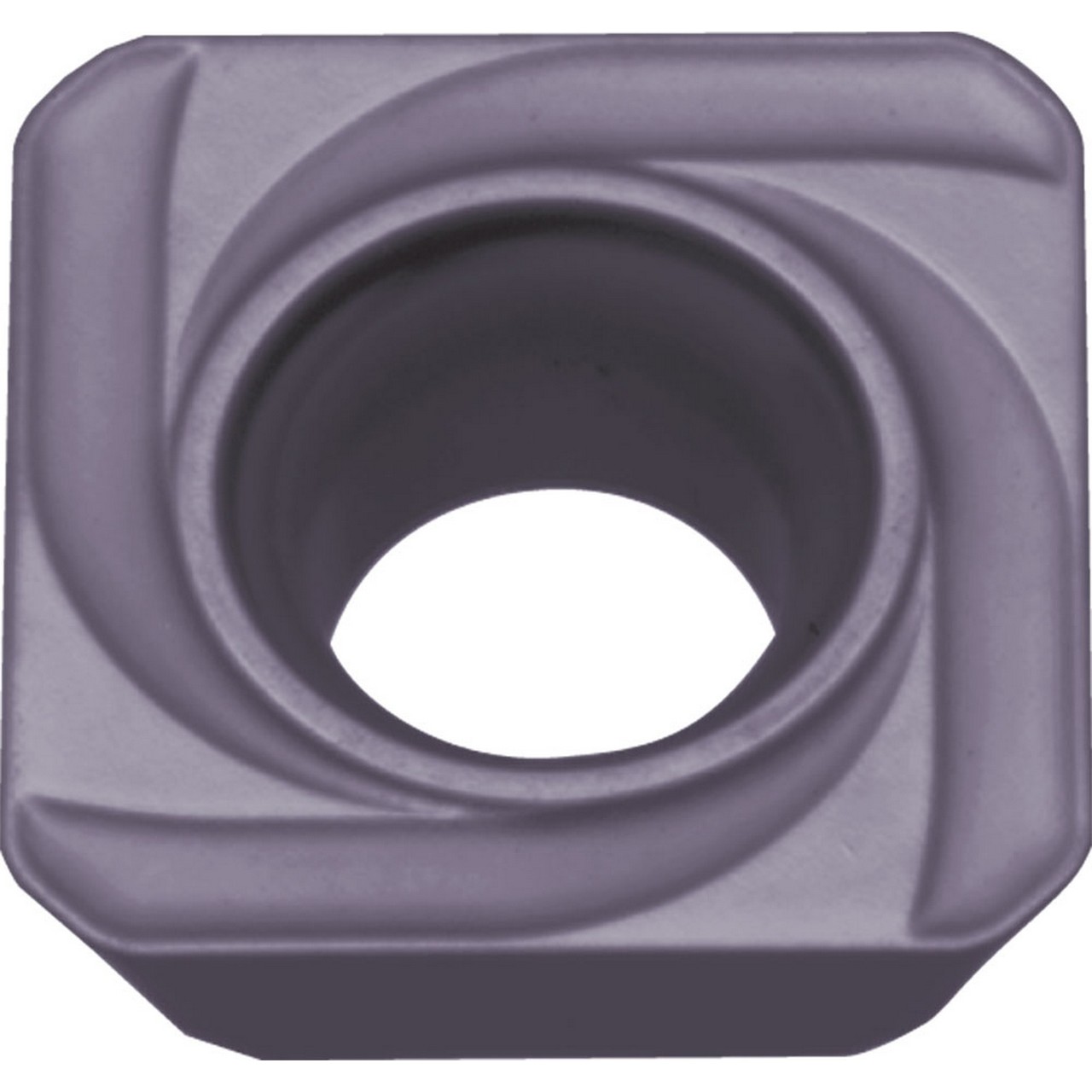

- Insert for milling
- Chamfered + honed edge with 4 cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| EDP Number | TKB05220 |
| Insert Included Angle (Degree) | 90 Degree |
| Inscribed Circle (Inch) | 1/2" |
| [IC] Inscribed Circle (mm) | 12.70mm |
| [RE] Corner Radius (Inch) | 0.039" |
| [RE] Corner Radius (mm) | 1.00mm |
| [S] Thickness (Inch) | 3/16" |
| [S] Thickness (mm) | 4.76mm |
| Application | Chamfering | Facing | Shouldering |
| Chipbreaker | AESR-H |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
1204
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.76mm
