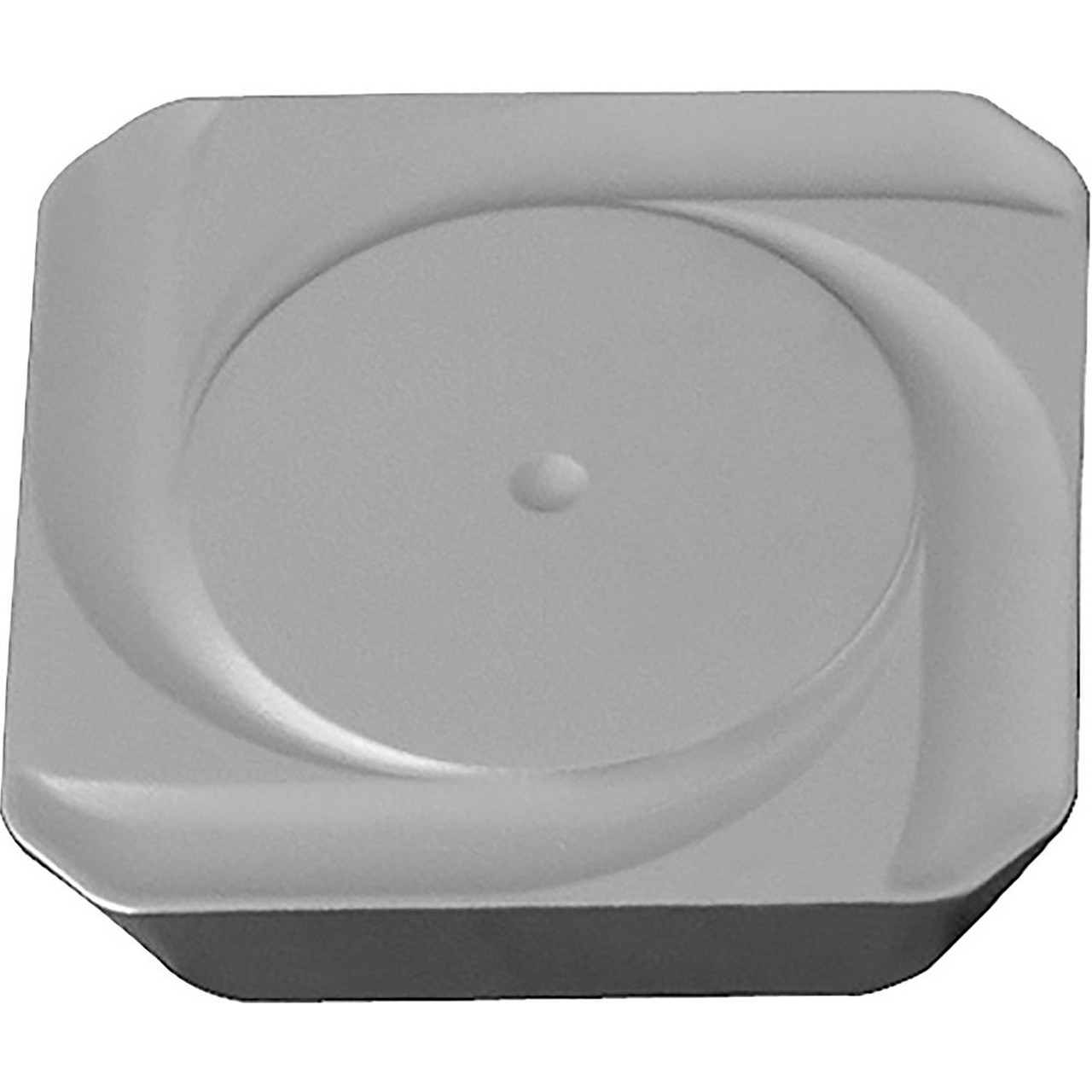

Kyocera Precision Tools TKB05247 | SEMR42AFERH PR1225 1/2" Circle Diameter x 1/8" Thickness PVD Coated Carbide Milling Insert

$21.08 $12.23
(You save $8.85)
Brand:
Kyocera Precision Tools
Insert Size:
42
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
SKU:
23237559
UPC:
Weight:
0.16 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, chamfering
  • Honed edge with 4 cutting edges
  • TiAlN fine surface coating
  • Application: For mold machining at high cutting speeds

Product Specifications
EDP NumberTKB05247
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)1/2"
[IC] Inscribed Circle (mm)12.70mm
[RE] Corner Radius (Inch)0.039"
[RE] Corner Radius (mm)1.00mm
[S] Thickness (Inch)1/8"
[S] Thickness (mm)3.18mm
ApplicationChamfering | Facing
ChipbreakerAFER-H
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
42
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
