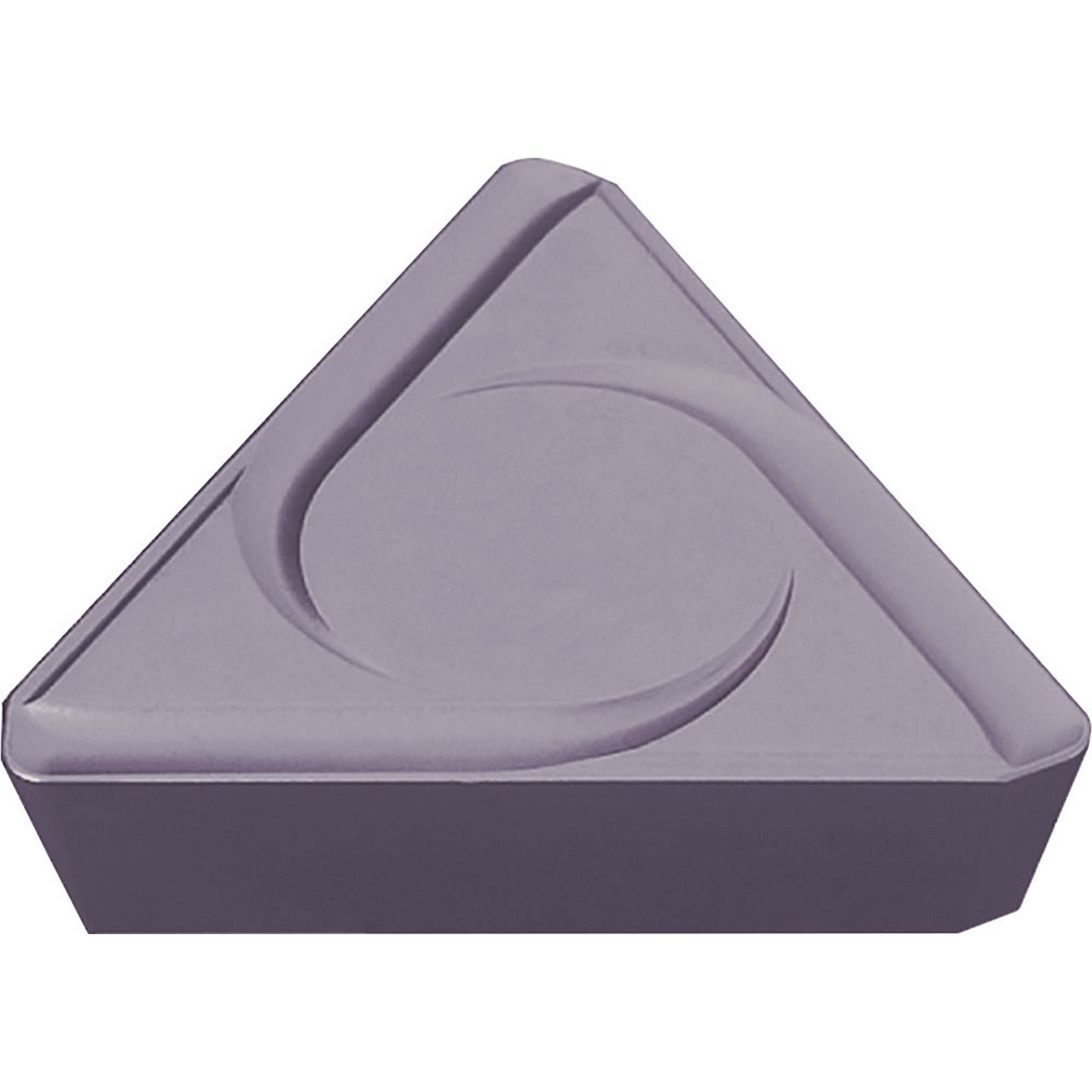

Kyocera Precision Tools TKB07066 | TPMR43PDERH PR1225 1/2" Circle Diameter x 3/16" Thickness PVD Coated Carbide Milling Insert

$31.38 $18.20
(You save $13.18)
Brand:
Kyocera Precision Tools
Insert Size:
43
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.76mm
SKU:
23237614
UPC:
Weight:
0.30 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting
  • Honed edge with 3 cutting edges
  • Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
  • Application: Light interrupted to interrupted cutting of stainless steel

Product Specifications
EDP NumberTKB07066
Insert Included Angle (Degree)60 Degree
Inscribed Circle (Inch)1/2"
[IC] Inscribed Circle (mm)12.70mm
[RE] Corner Radius (Inch)0.039"
[RE] Corner Radius (mm)1.00mm
[S] Thickness (Inch)3/16"
[S] Thickness (mm)4.76mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerPDER-H
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
43
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.76mm
