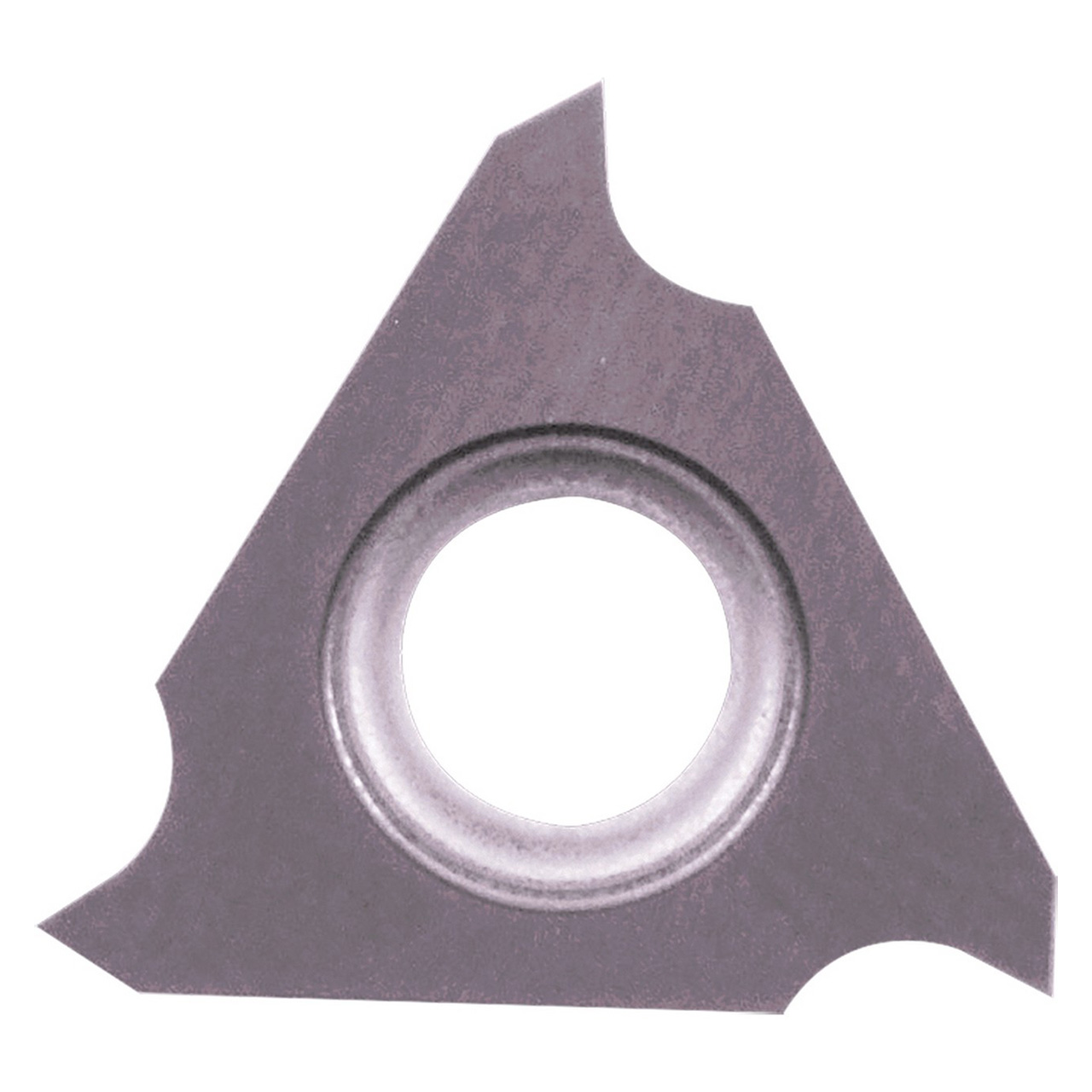

Kyocera Precision Tools TKH40011 | GBF32R120010 PR1215 0.0472" Cutting Width x 1/8" Thickness Uncoated Carbide Grooving Insert

$21.39
Brand:
Kyocera Precision Tools
Insert Style:
GBF
Insert Size:
120
Material:
Carbide;Cutting Width (Decimal Inch)=0.0472"""
Cutting Width (mm):
1.20mm
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2.00mm
Manufacturer's Grade:
PR1215
Finish/Coating:
Uncoated
SKU:
23239126
Weight:
0.10 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • 3 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for carbon/alloy steel and stainless steel

Product Specifications
Tool NumberTKH40011
Max Depth of Cut (Decimal Inch)0.0787"
Max Depth of Cut (mm)2.00mm
Cutting Width (Decimal Inch)0.0472"
Cutting Width (mm)1.20mm
Cutting Width Minimum (Decimal Inch)0.0472"
Cutting Width Minimum (mm)1.20mm
Cutting Width Maximum (Decimal Inch)0.0472"
Cutting Width Maximum (mm)1.20mm
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)1/8"
Thickness (mm)3.18mm
ApplicationExternal Grooving
Coating ProcessUncoated
Cutting RangeMedium Roughing
HandRight Hand
Insert Holding MethodScrew
Insert GradePR1215
Insert Size120
MaterialCarbide
Number of Cutting Edges3
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
