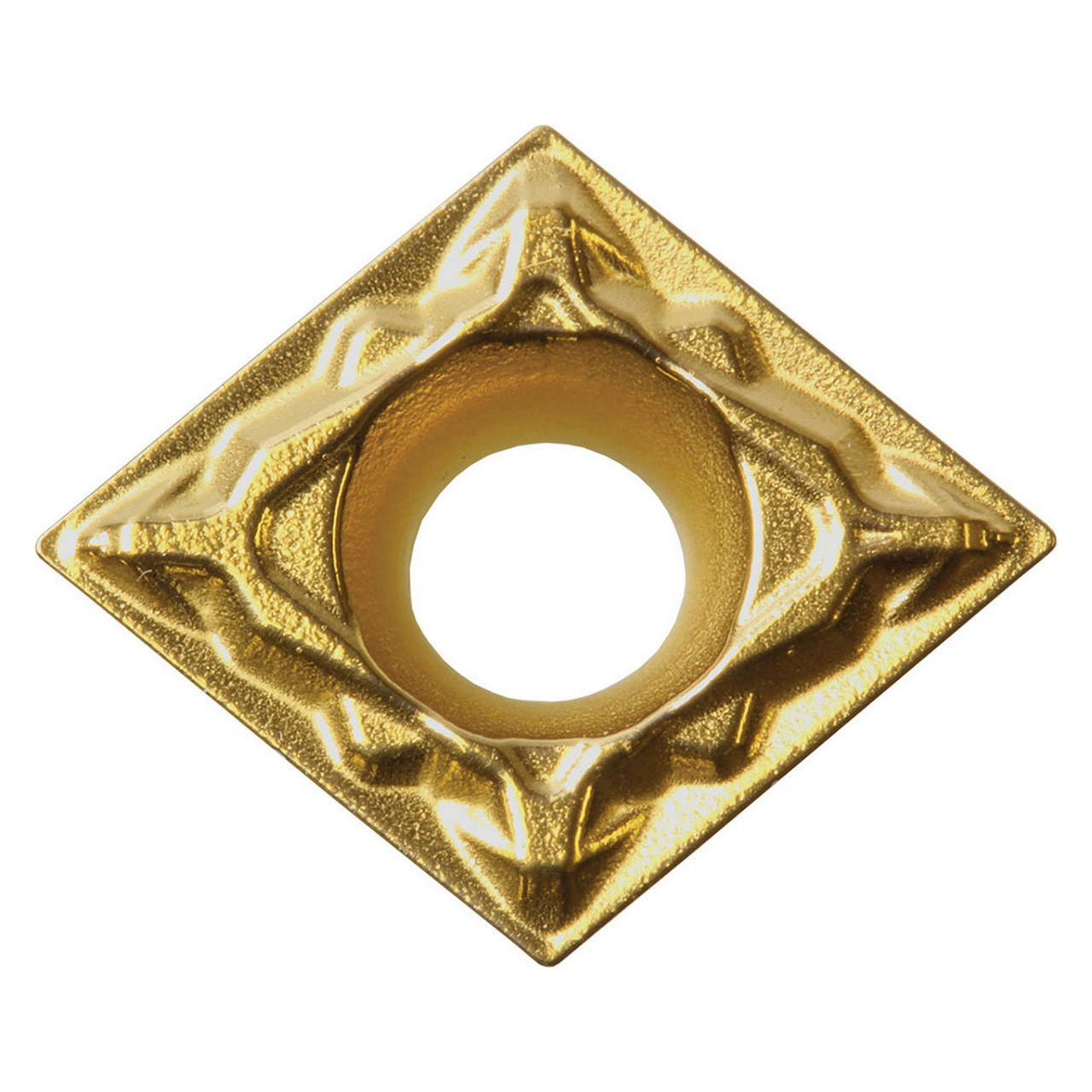

Kyocera Precision Tools TMJ40018 | CPMT251505PP CCX 5/16" Circle Diameter x 3/32" Thickness CVD Coated Cermet Indexable Turning Insert

$7.62
Brand:
Kyocera Precision Tools
Insert Style:
CPMT
Insert Size:
251505
Material:
Cermet;Inscribed Circle (Inch)=5/16"""
Inscribed Circle (Decimal Inch):
0.3126"
Inscribed Circle (mm):
7.94mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
CCX
SKU:
23248070
Weight:
0.05 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for boring, internal facing
  • 2 Cutting edges
  • High strength for higher productivity. Excellent wear resistance built for long tool life

Product Specifications
EDP NumberTMJ40018
Inscribed Circle (Inch)5/16"
Inscribed Circle (mm)7.94mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBoring | Internal Facing
ChipbreakerPP
Coating ProcessCVD
Cutting RangeFinishing
HandNeutral
Insert GradeCCX
Insert Holding MethodScrew or Clamp
Insert Shape80 Degree Diamond
Insert Included Angle ( Degree)80 Degree
Insert Size251505
MaterialCermet
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
