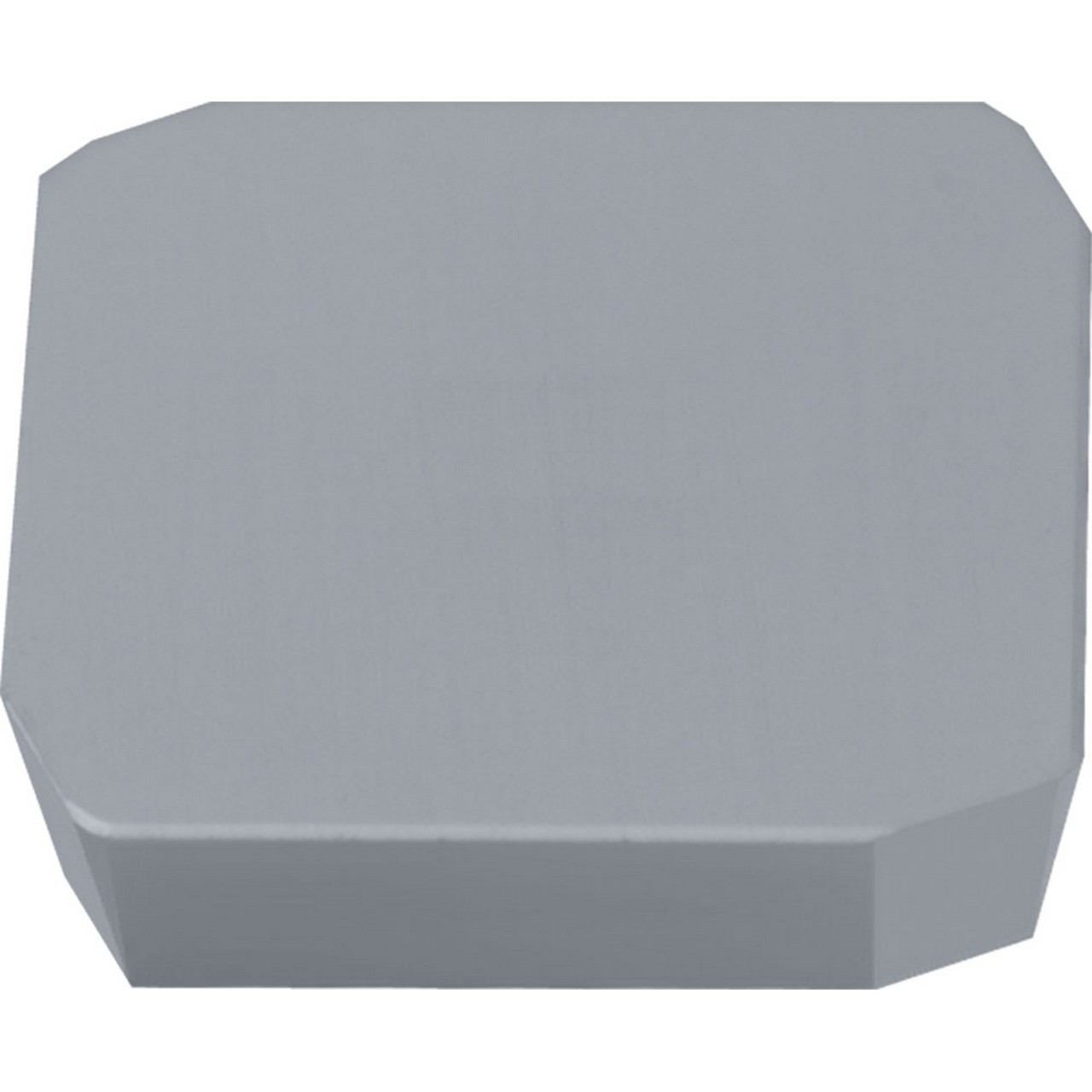

Kyocera Precision Tools TSP00723 | SPCN42XPTR TN100M 1/2" Circle Diameter x 1/8" Thickness Uncoated Cermet Milling Insert

$14.86
Brand:
Kyocera Precision Tools
Insert Size:
42
Material:
Cermet;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1300"
Thickness (mm):
3.18mm
SKU:
23250095
Weight:
0.09 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for milling
  • Chamfered edge with 2 cutting edges
  • Tough cermet with improved oxidation resistance and thermal shock resistance
  • Application: Turning of steel at high speed

Product Specifications
EDP NumberTSP00723
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)1/2"
[IC] Inscribed Circle (mm)12.70mm
[RE] Corner Radius (Inch)0.039"
[RE] Corner Radius (mm)1.00mm
[S] Thickness (Inch)1/8"
[S] Thickness (mm)3.18mm
ApplicationChamfering | Facing | Shouldering
ChipbreakerXPTR
Coating ProcessUncoated
