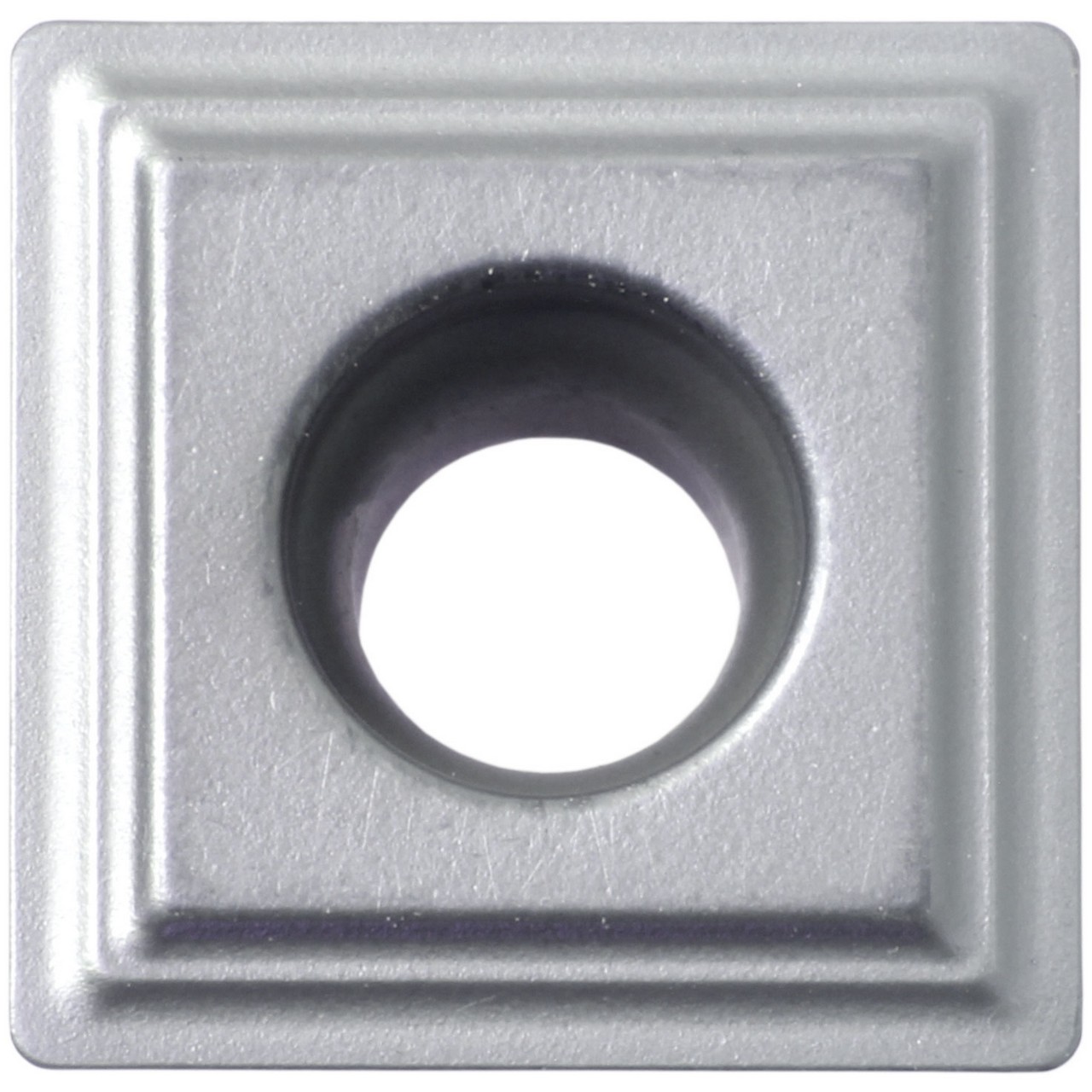

Kyocera Precision Tools TWE00817 | SPMT060204EZ KW10 1/4" Circle Diameter x 3/32" Thickness Uncoated Carbide Milling Insert

$17.46 $10.13
(You save $7.33)
Brand:
Kyocera Precision Tools
Insert Size:
060204
Material:
Carbide;Finish/Coating=Uncoated
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Decimal Inch):
0.0900"
Thickness (mm):
2.38mm
SKU:
23251880
UPC:
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for bolt counterboring, facing, shouldering
  • 4 Cutting edges
  • ISO identification symbol K carbide (K10 relevant)
  • Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Product Specifications
EDP NumberTWE00817
Insert Included Angle (Degree)90 Degree
Inscribed Circle (Inch)1/4"
[IC] Inscribed Circle (mm)6.35mm
[RE] Corner Radius (Inch)1/64"
[RE] Corner Radius (mm)0.40mm
[S] Thickness (Inch)3/32"
[S] Thickness (mm)2.38mm
ApplicationBolt Countersinking | Facing | Shouldering
ChipbreakerE-Z
Coating ProcessUncoated
