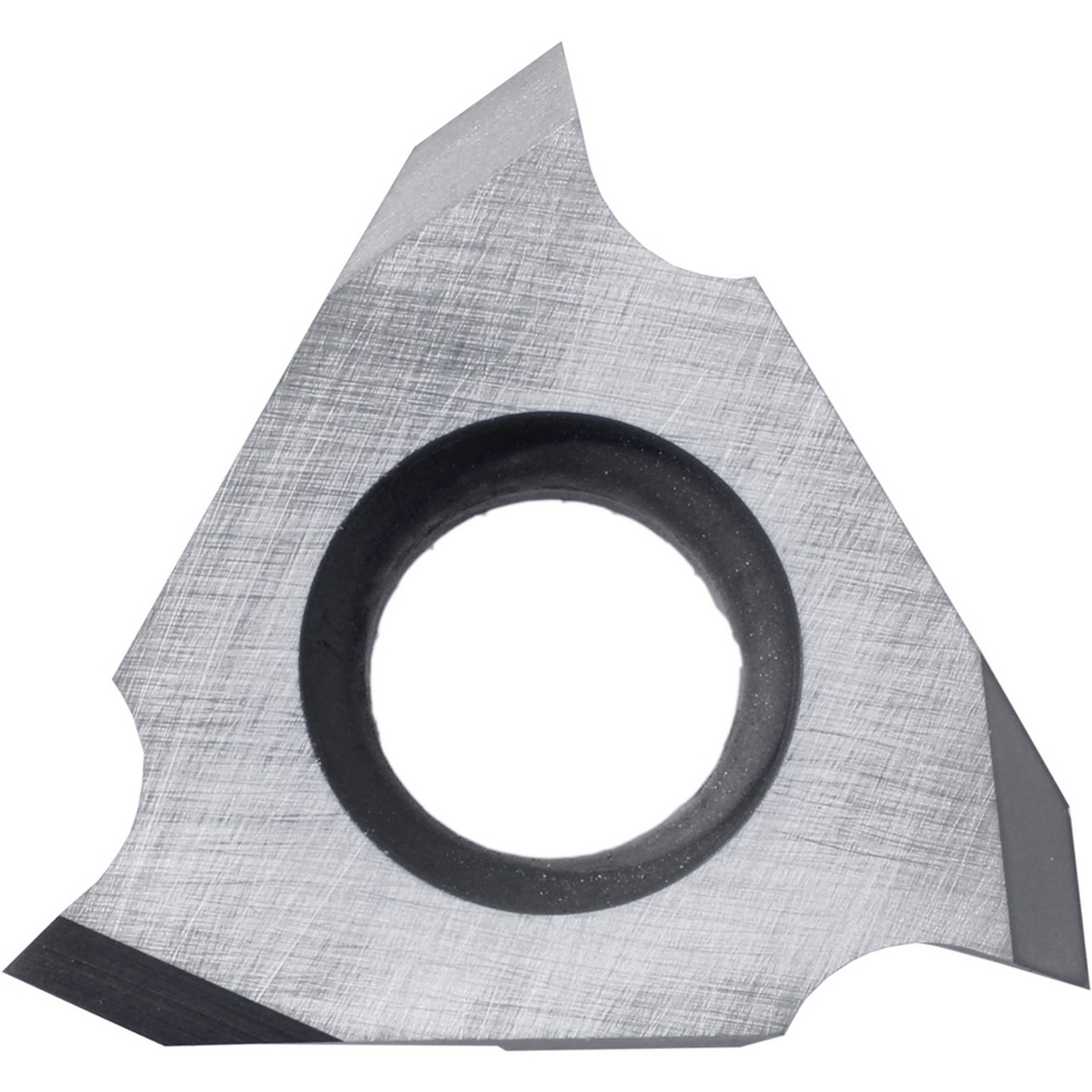

Kyocera Precision Tools TWE03010 | TTX32R6001 KW10 3/8" Circle Diameter x 1/8" Thickness Uncoated Carbide Threading Insert

$22.98
Brand:
Kyocera Precision Tools
Insert Style:
TTX
Insert Size:
32
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
KW10
External Pitch/TPI (Inch):
3/64 - 5/64 "
External Pitch/TPI (Decimal Inch):
0.0400 - 0.0800"
External Pitch/TPI (mm):
M: 1.0-2.0mm
Finish/Coating:
Uncoated;Material=Carbide
SKU:
23252062
Weight:
0.13 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 3 cutting edges
  • 60 Degree partial profile for metric (M), unified (UN) threads
  • ISO identification symbol K carbide (K10 relevant)
  • Application: Stable cutting of cast iron, non-ferrous materials, non-metals, and titanium alloys

Product Specifications
EDP NumberTWE03010
Inscribed Circle (Inch)3/8"
[IC] Inscribed Circle (mm)9.525mm
[RE] Corner Radius (Inch)0.004"
[RE] Corner Radius (mm)0.10mm
[S] Thickness (Inch)1/8"
[S] Thickness (mm)3.18mm
ApplicationExternal Threading
Coating ProcessUncoated
