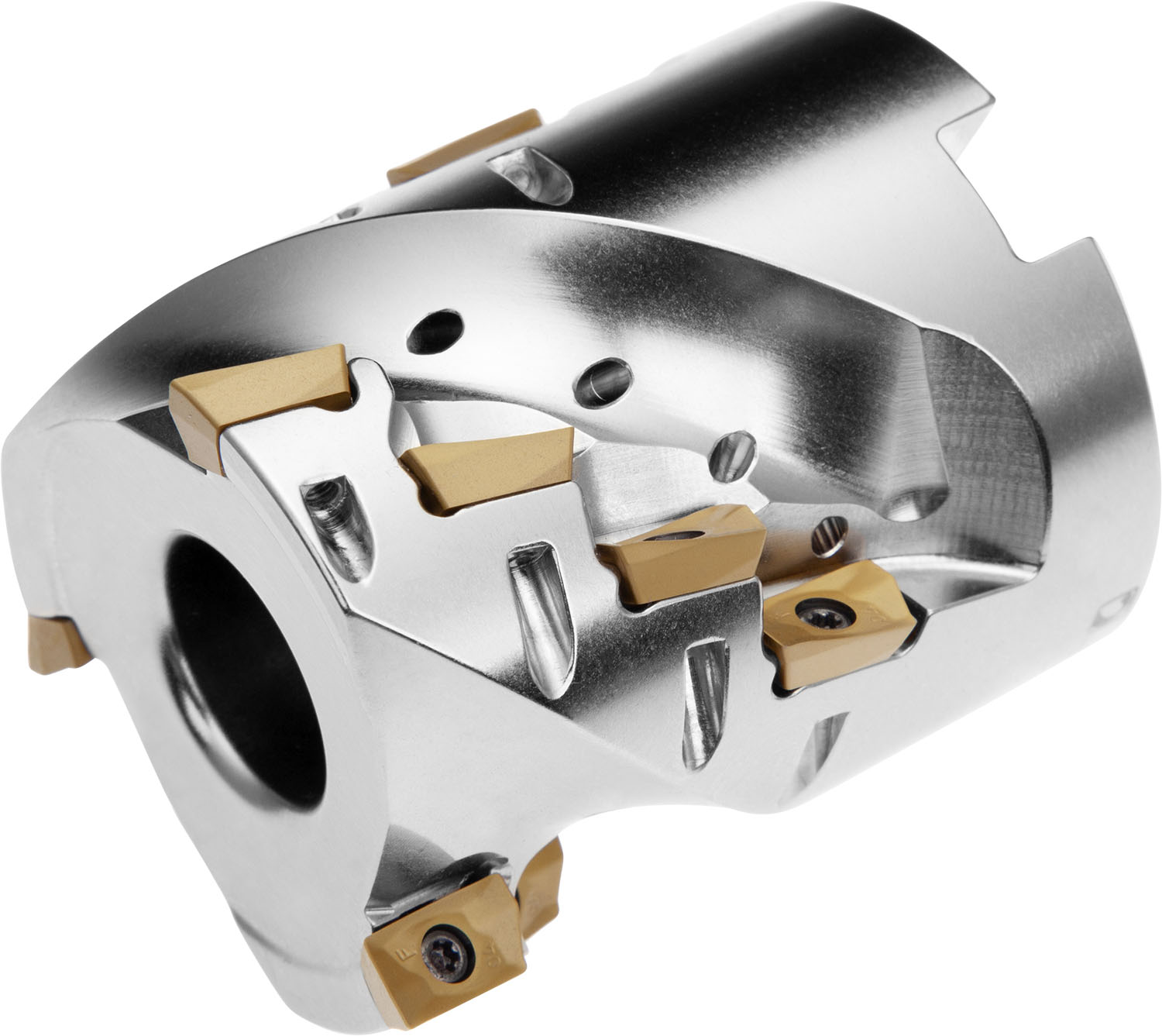

Shoulder mill with extended flute with positve/negative geometry which utilises 12 off ADMX 11T3.. single-sided inserts, cutting diameter 50 mm with 90 Degree approach angle and 22 mm connection bore according to DIN 8030, 37 mm functional and 58.0 mm protrusion length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 37 mm.
Product Specifications
| EDP Number | 6759650 |
| Peripheral Effective Cutting Edge Count | 12 |
| Insert Index Count | 12 |
| Maximum Depth of Cut (mm) | 37 mm |
| Flute Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -7.2 |
| Max Rotational Speed | 17000 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Connection Bore Depth (mm) | 21 mm |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Cutting Diameter (mm) | 50 mm |
| Cutting Diameter (Inch) | 1.969" |
| Functional Length (mm) | 58 mm |
| Country of origin | Czech Republic |
