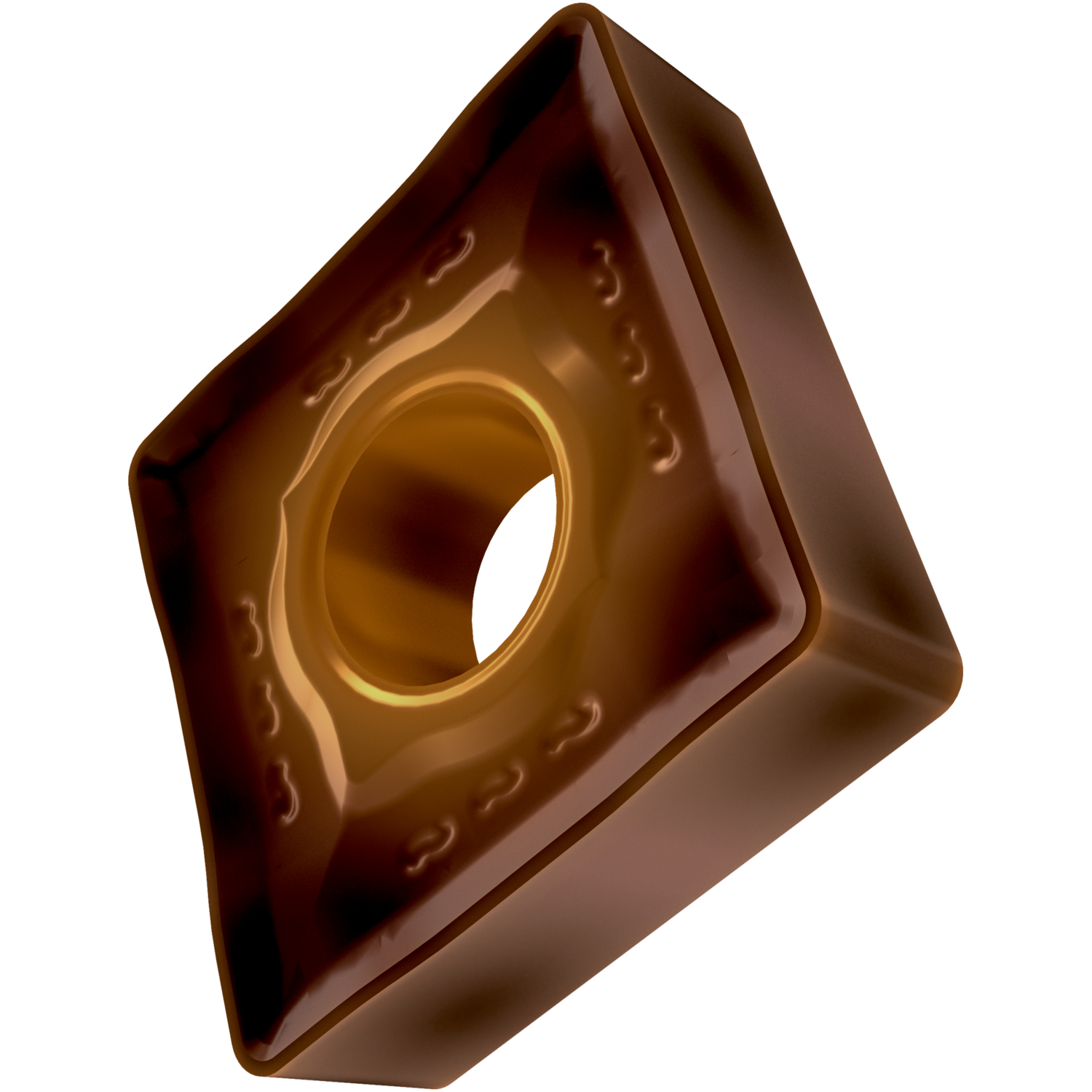

Single-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 25.4 mm, 9.52 mm thick, 2.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NR2 with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P25-P40 and M20-M35, for medium to extra heavy machining of steels and stainless-steels.
Product Specifications
EDP Number | 7977342 |
Coating Property | 1 |
Maximum Axial Groove Outside Diameter (mm) | |
Fixing Hole Diameter (mm) | 9.12 mm |
Fixing Hole Diameter (Inch) | 0.359" |
Cutting Edge Length (mm) | 25.8 mm |
Cutting Edge Length (Inch) | 1.016" |
Inscribed Circle Diameter (mm) | 25.4 mm |
Inscribed Circle Diameter (Inch) | 1" |
Insert Thickness (mm) | 9.525 mm |
Insert Thickness (Inch) | 0.375" |
Corner Radius (mm) | 2.4 mm |
Corner Radius (Inch) | 0.094" |
Coating Process | PVD |
Coating | T8430 |
Surface Color | Golden - Brown |
Chipbreaker Manufacturer's Designation | NR2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
1-1/64"
Length (Decimal Inch):
1.0160"
Length (mm):
25.8mm
Inscribed Circle (Inch):
1"
Inscribed Circle (Decimal Inch):
1.0000"
Inscribed Circle (mm):
25.4mm
Thickness (Inch):
3/8"
Thickness (Decimal Inch):
0.3750"
Thickness (mm):
9.525mm
Corner Radius (Inch):
3/32"
Corner Radius (Decimal Inch):
0.0940"
Corner Radius (mm):
2.4mm
interval quantity:
10
