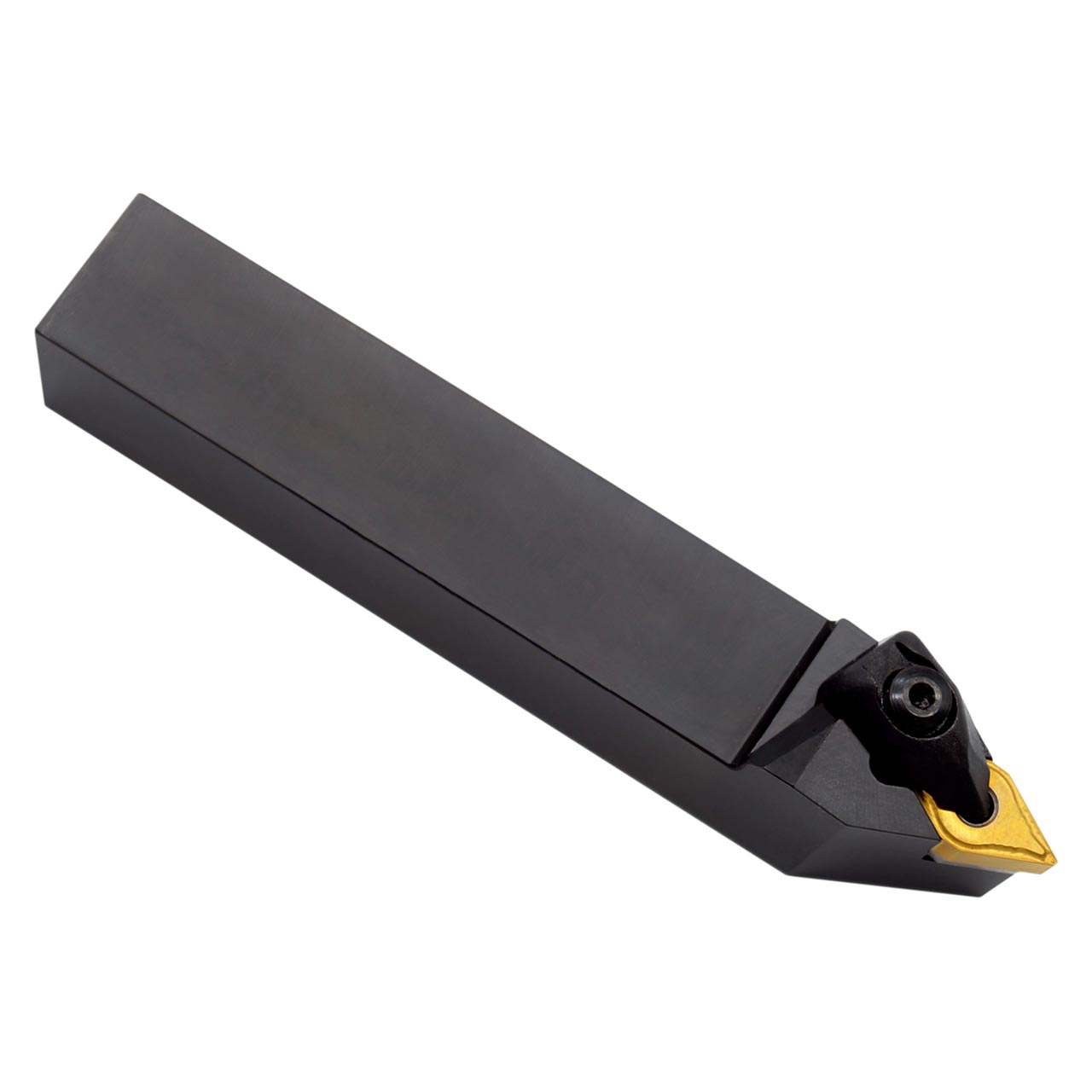

Double clamp turning tool for holding a 55° rhombus negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation DN.. 33. ), neutral hand 62.5°, left and right side cutting, 3/4'' tool height x 3/4'' width x 4.1/2'' long for single and multi-directional copy turning.
Product Specifications
| EDP Number | 6788574 |
| Functional Height (Inch) | 0.75" |
| Functional Width (Inch) | 0.375" |
| Orthogonal Rake Angle | -5 |
| Inclination Angle | -9 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 0.75 mm |
| Shank Width (Inch) | |
| Functional Length (Inch) | 4.5" |
| Head Length (Inch) | 1.23" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-5
Shank Width (Inch):
3/4"
Shank Width (Decimal Inch):
0.7500"
Shank Width (mm):
19.05mm
Shank Height (Inch):
1/32"
Shank Height (Decimal Inch):
0.0300"
Shank Height (mm):
0.75mm
