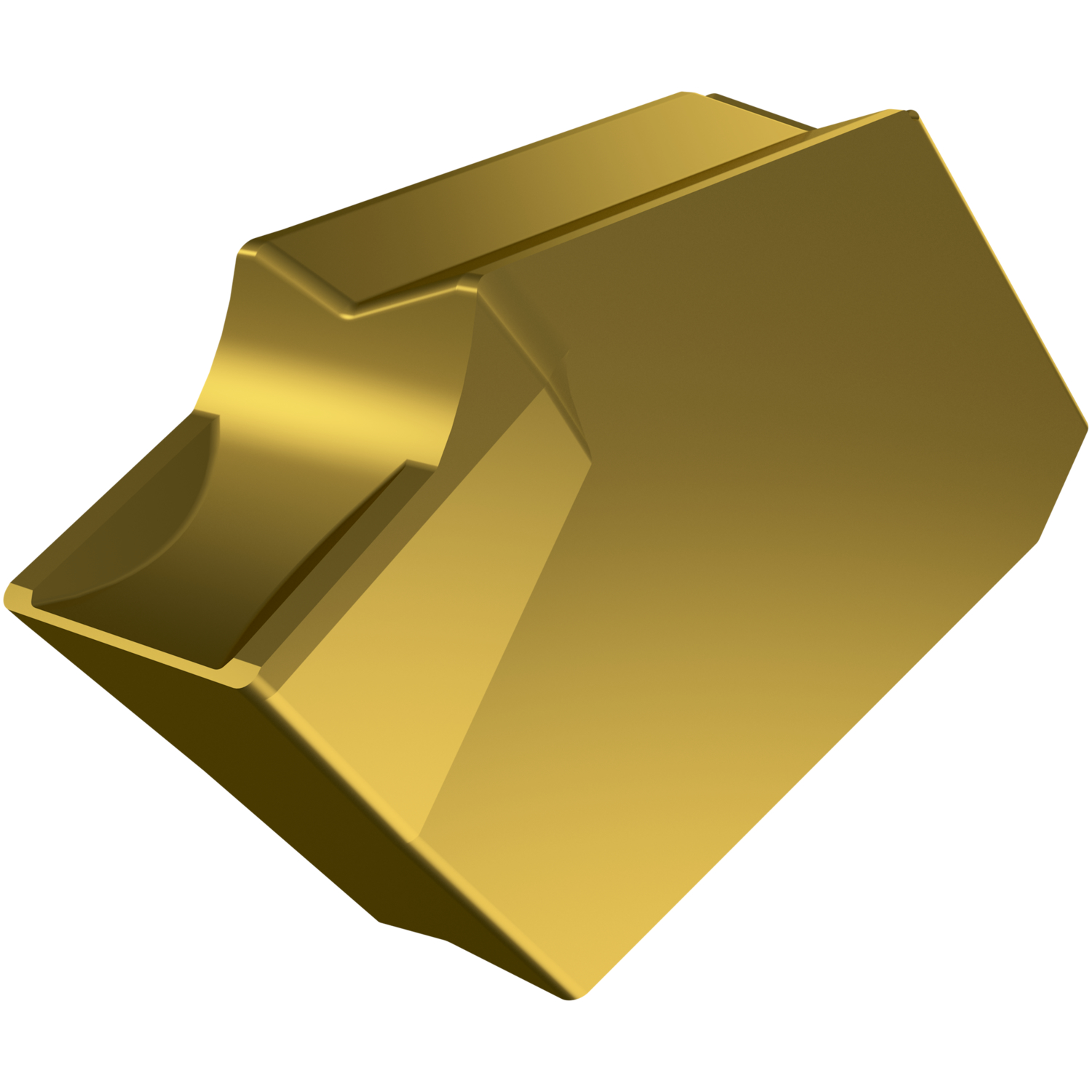

Single ended parting and grooving insert, with a 4 mm cutting width and 0.2 mm corner radii, an accuracy according to tolerance class-U and cutting edges with facet, grade 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and K25-K40 for machining of steel and cast-iron in combination with PRAMET XLCFN 04 and XLCF(RL) 04 parting and grooving tools.
Product Specifications
| EDP Number | 6751688 |
| Cutting Width (Inch) | 0.157" |
| Cutting Width (mm) | 4 mm |
| Cutting Width Lower Tolerance (mm) | -0.15 mm |
| Cutting Width Upper Tolerance (mm) | 0.15 mm |
| Max Cutting Depth (mm) | 4.9 mm |
| Max Cutting Depth (Inch) | 0.193" |
| Coating Property | 1 |
| Body Diameter (Inch) | |
| Insert Length (mm) | 11.5 mm |
| Insert Length (Inch) | 0.453" |
| Insert Body Width (mm) | 3.44 mm |
| Corner Radius (mm) | 0.2 mm |
| Corner Radius (Inch) | 0.008" |
| Coating Process | MT-CVD |
| Coating | 6640 |
| Surface Color | Gold |
| Cutting Width Lower Tolerance (Inch) | -0.006" |
| Cutting Width Upper Tolerance (Inch) | 0.006" |
| Chipbreaker Manufacturer's Designation | With chipbreaker -no designation |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
5/32"
Cutting Width (Decimal Inch):
0.1570"
Cutting Width (mm):
4mm
Finish/Coating:
6640
interval quantity:
10
