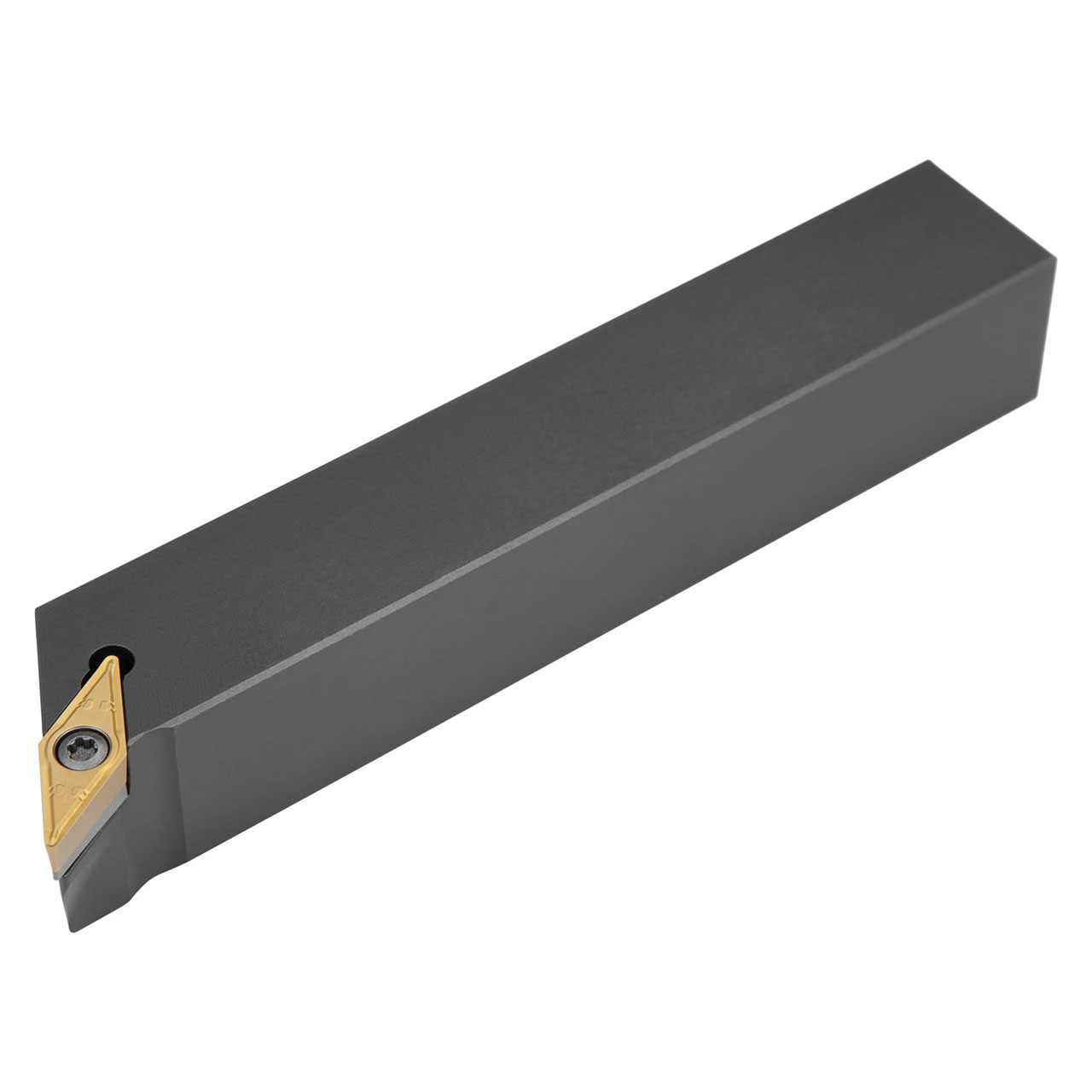

Screw clamp turning tool for holding a 35° rhombus positive insert with an inscribed circle diameter of 9.525 mm, 4.76 mm thick (ISO designation VB.. 1604.. or VC.. 1604.. ), right hand 62.5°, left and right side cutting, 32 mm tool height x 25 mm width x 170 mm long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6756630 |
| Functional Height (mm) | 32 mm |
| Functional Width (mm) | |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 32 mm |
| Shank Width (mm) | 25 mm |
| Functional Length (mm) | 170 mm |
| Head Length (mm) | 25 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9800"
Shank Width (mm):
25mm
Shank Height (Inch):
117/64"
Shank Height (Decimal Inch):
1.2600"
Shank Height (mm):
32mm
