Features:
- Balanced to 30000 RPM
- 0.0001" TIR
- Includes Hi-Q Nut
- High Vibration Damping
Product Specifications
| Manufacturer Part Number | 4130.12036 |
| Projection (Decimal Inch) | 2.758" |
| Projection (mm) | 70.00mm |
| Nose Diameter (Decimal Inch) | 1.340" |
| Nose Diameter (mm) | 34.00mm |
| TIR (Decimal Inch) | 0.0001" |
| TIR (mm) | 0.003mm |
| Maximum | 30000 RPM |
| Length (Decimal Inch) | 2.5000" |
| Width (Decimal Inch) | 2.5000" |
| Height (Decimal Inch) | 6.0000" |
| Coolant Thru Capable | Yes |

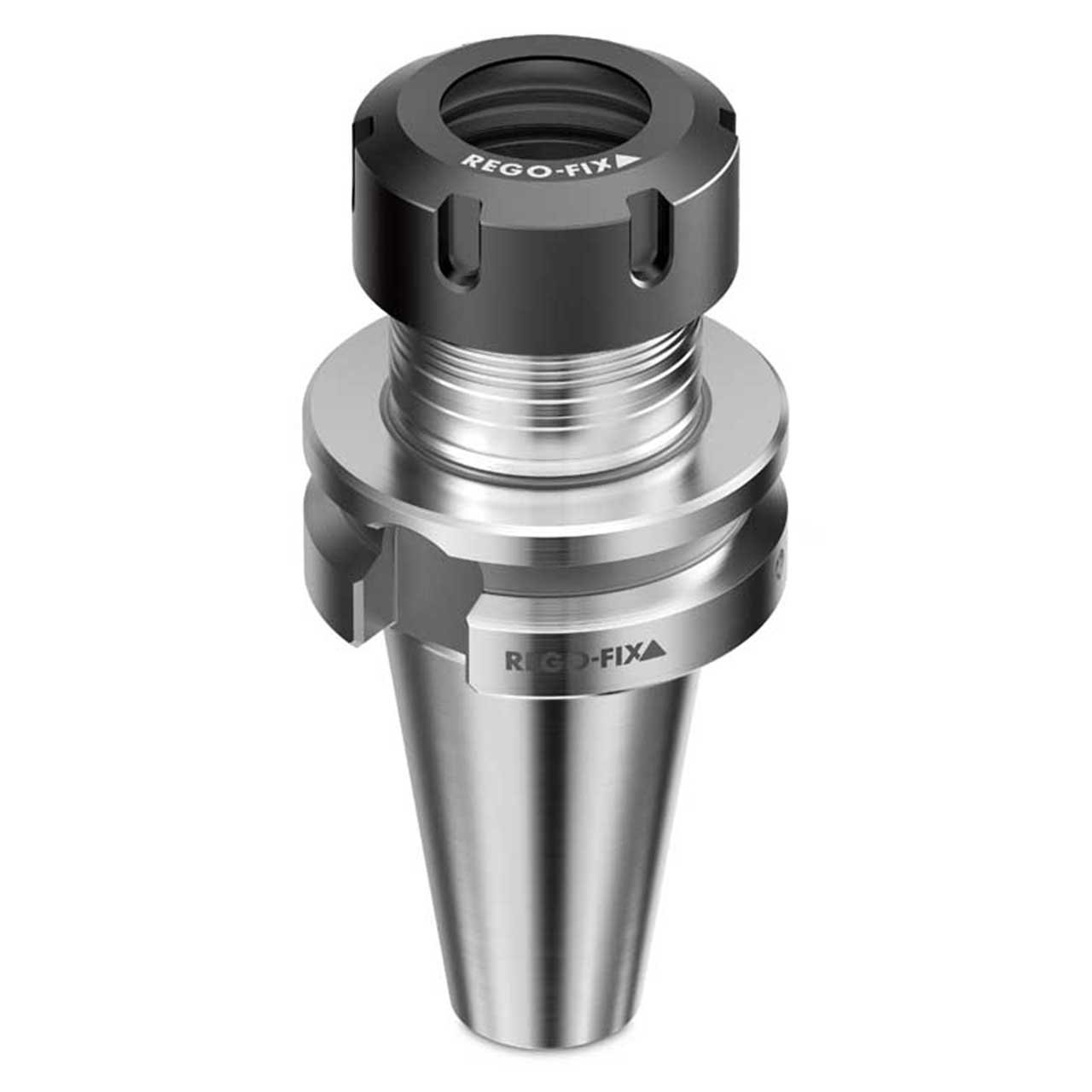

| Product Type | Collet Chuck |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Rego-Fix
Length (Inch):
2-1/2"
Length (Decimal Inch):
2.5000"
Length (mm):
63.50mm
Width (Inch):
2-1/2"
Width (Decimal Inch):
2.5000"
Width (mm):
63.50mm
Height (Inch):
6"
Height (Decimal Inch):
6.0000"
Height (mm):
152.40mm
Projection (Inch):
2-47/62"
Projection (Decimal Inch):
2.7580"
Projection (mm):
70.00mm
Nose Diameter (Inch):
1-17/50"
Nose Diameter (Decimal Inch):
1.3400"
Nose Diameter (mm):
34.00mm
TIR (Decimal Inch):
0.0001"
TIR (mm):
0.003mm
Maximum (RPM):
30000 RPM
Coolant Thru Capable:
Yes
