Features:
- Positive high shear tool design reduces cutting force
- AlTiN+ coating helps extend tool life
- Stocked in both uncoated and AlTiN+ coating
- Made with premium submicron grade carbide
Product Specifications

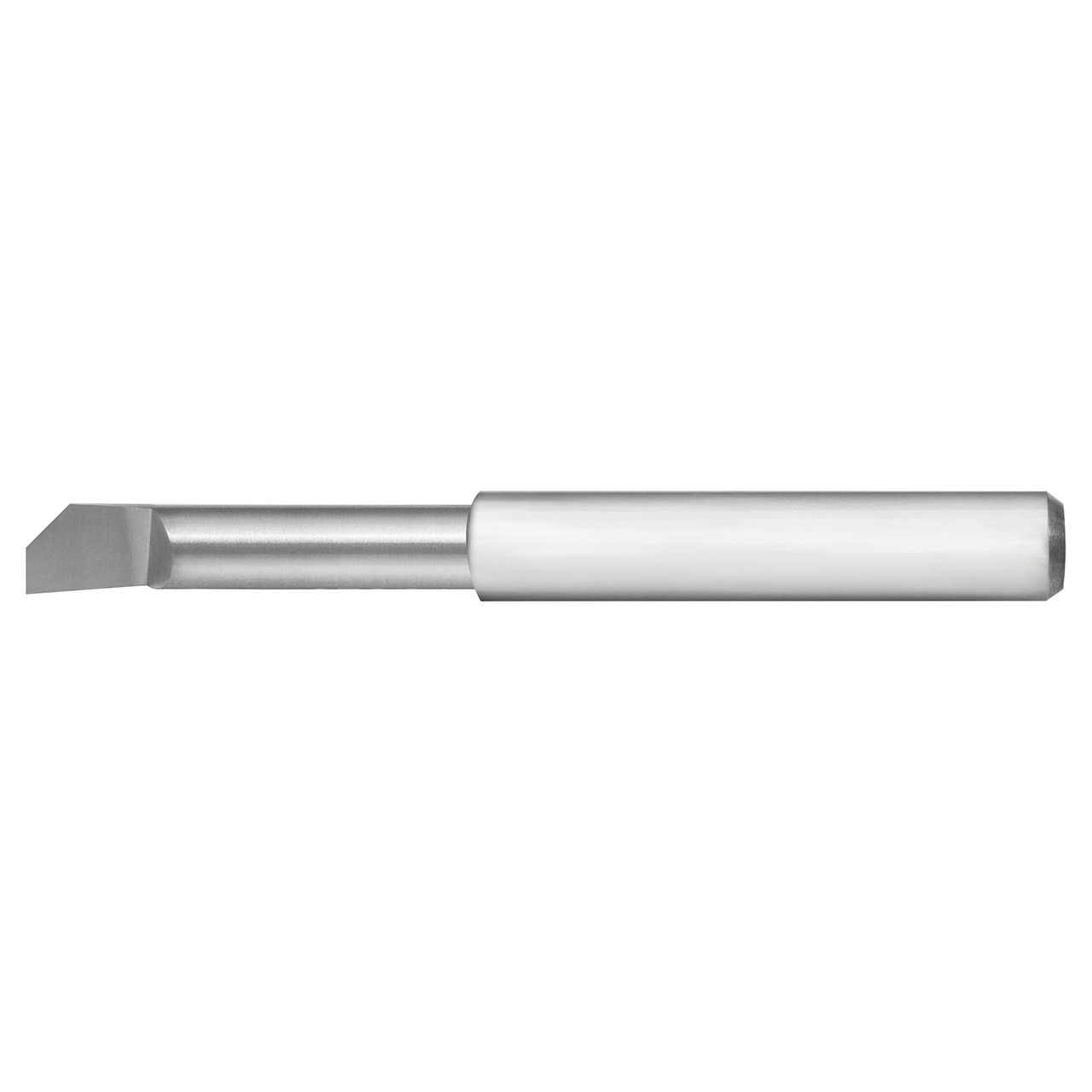

| Manufacturer Part Number | HB70F |
| Minimum Bore Diameter (Decimal Inch) | 0.070" |
| Maximum Bore Depth (Decimal Inch) | 0.437" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Overall Length (Decimal Inch) | 1.500" |
| Material | Solid Carbide |
| Coating | Uncoated |
| Product Type | Back Boring Bar |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Scientific Cutting Tools
Minimum Bore Diameter (Inch):
1/16"
Minimum Bore Diameter (Decimal Inch):
0.0700"
Minimum Bore Diameter (mm):
1.78mm
Maximum Bore Depth (Inch):
7/16"
Maximum Bore Depth (Decimal Inch):
0.4370"
Maximum Bore Depth (mm):
11.10mm
Material:
Solid Carbide
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Finish/Coating:
Uncoated
