Product Specifications
| Manufacturer Part Number | 00005598 |
| Cutting Diameter (mm) | 63.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 47.00mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 10.40mm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -6.7 Degree |
| Rake Radial Angle (Degree) | -6.7 Degree |
| Rake Orthogonal Angle (Degree) | -6.7 Degree |
| Axial Rake Angle (Degree) | 10 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 9600 rpm |
| Shank Type | Arbor |

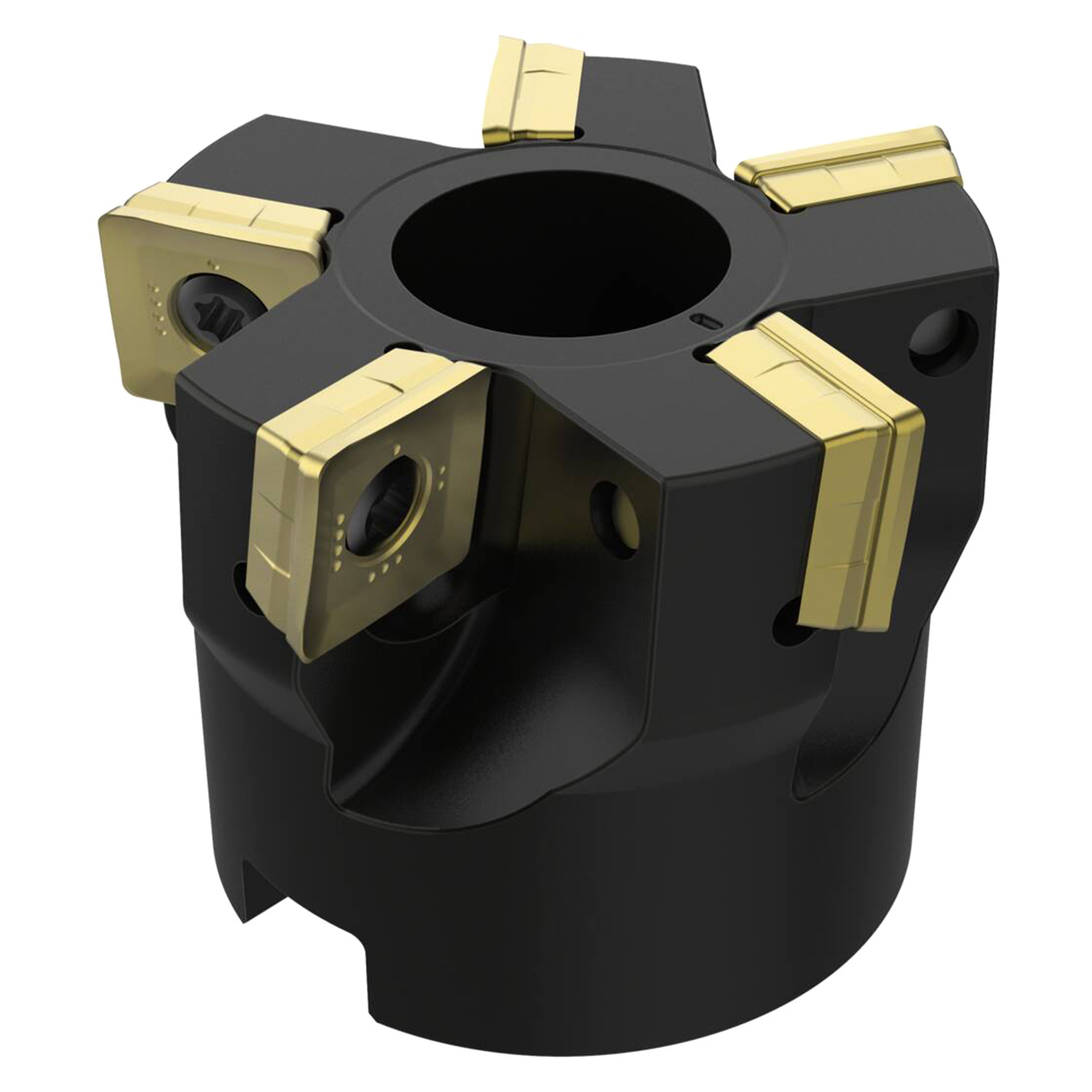

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-12/25"
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Shank Type:
Arbor
interval quantity:
1
