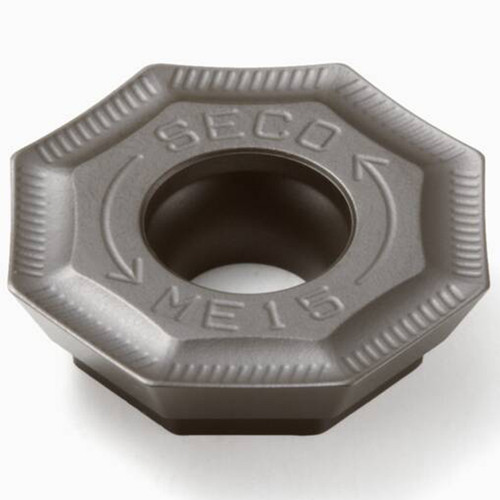

Seco Tools 00005743 | 0.706" Inscribed Circle Diameter x 0.020" Radius x 0.180" Thickness 8 Cutting Edge Carbide Octomill Insert

$27.18
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
12/17"
Inscribed Circle (Decimal Inch):
0.7060"
Inscribed Circle (mm):
17.94mm
Thickness (Inch):
9/50"
Thickness (Decimal Inch):
0.1800"
Thickness (mm):
4.56mm
interval quantity:
1
SKU:
23272908
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 00005743 | 0.706" Inscribed Circle Diameter x 0.020" Radius x 0.180" Thickness 8 Cutting Edge Carbide Octomill Insert

Product Specifications
Manufacturer Part Number00005743
Inscribed Circle Diameter (Decimal Inch)0.706"
Inscribed Circle Diameter (mm)17.94mm
Wiper Edge Length (Decimal Inch)0.055"
Wiper Edge Length (mm)1.40mm
Cutting Edge Effective Length (Decimal Inch)0.280"
Cutting Edge Effective Length (mm)7.10mm
Functional Width (Decimal Inch)0.866"
Functional Width (mm)22.00mm
Corner Radius (Decimal Inch)0.020"
Corner Radius (mm)0.50mm
Insert Thickness (Decimal Inch)0.180"
Insert Thickness (mm)4.56mm
Clearance Angle Major (Degree)26 Degree
Cutting Edge Count8
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME15
Pocket Seat Code of The CutterOF..0704
Insert Size And ShapeOFET0704
Insert Rake Angle (Degree)18 Degree
Insert HandNeutral
MaterialCarbide
Product TypeOctomill Insert

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
12/17"
Inscribed Circle (Decimal Inch):
0.7060"
Inscribed Circle (mm):
17.94mm
Thickness (Inch):
9/50"
Thickness (Decimal Inch):
0.1800"
Thickness (mm):
4.56mm
interval quantity:
1
