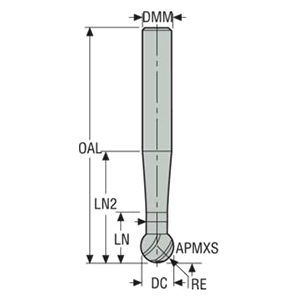

Product Specifications
| Manufacturer Part Number | 00040372 |
| Cutting Diameter (mm) | 3.00mm |
| Cutting Diameter 1 (mm) | 3.00mm |
| Connection Diameter Machine Side (mm) | 3.00mm |
| Shank Diameter (mm) | 3.00mm |
| Neck Diameter (mm) | 1.50mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 3.90mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 5.40mm |
| Cutting Edge Effective Length (mm) | 2.30mm |
| Neck Length (mm) | 4.80mm |
| Neck Length 1 (mm) | 4.80mm |
| Neck Length 2 (mm) | 9.90mm |
| Minimum Clamping Length (mm) | 28.00mm |
| Length Variant Cataloque | 2 |
| Theoretical Cutting Edge Length (mm) | 2.30mm |
| Overall Length (mm) | 60.00mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (mm) | 2.30mm |
| Corner Radius (mm) | 1.50mm |
| Radial Runout (mm) | 0.01mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Flute Helix Angle (Degree) | 40 Degree |
| Rake Radial Angle (Degree) | 14 Degree |
| Rake Orthogonal Angle (Degree) | 14 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Right Hand |
| Sphere Angle (Degree) | 250 Degree |
| Center Cutting Capability | Yes |
| Cutting Geometry Type | JH460 |
| Cutting Geometry Type Technical | JH460 |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | HEMI |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
2/17"
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (mm):
3.00mm
Number of Flutes:
2
Material:
Carbide
Shank Type:
Cylindrical
Overall Length (Inch):
2-21/58"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Shank Diameter (Inch):
2/17"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3.00mm
Finish/Coating:
HEMI
Cutting Direction:
Right Hand
Helix Angle:
40 Degree
interval quantity:
1
