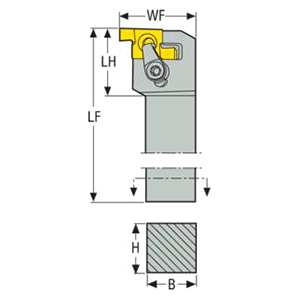

Product Specifications
| Manufacturer Part Number | 02411448 |
| Minimum Initial Plunge Diameter (mm) | 16.00mm |
| Maximum Initial Plunge Diameter (mm) | 9999.00mm |
| Functional Length (mm) | 150.00mm |
| Head Length (mm) | 22.00mm |
| Shank Width (mm) | 25.00mm |
| Height of Tool Holder Shank (mm) | 25.00mm |
| Functional Width (mm) | 35.35mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Square shank |
| Product Type | Indexable Grooving Toolholder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Shank Width (Inch):
63/64"
Shank Width (Decimal Inch):
0.9843"
Shank Width (mm):
25.00mm
interval quantity:
1
