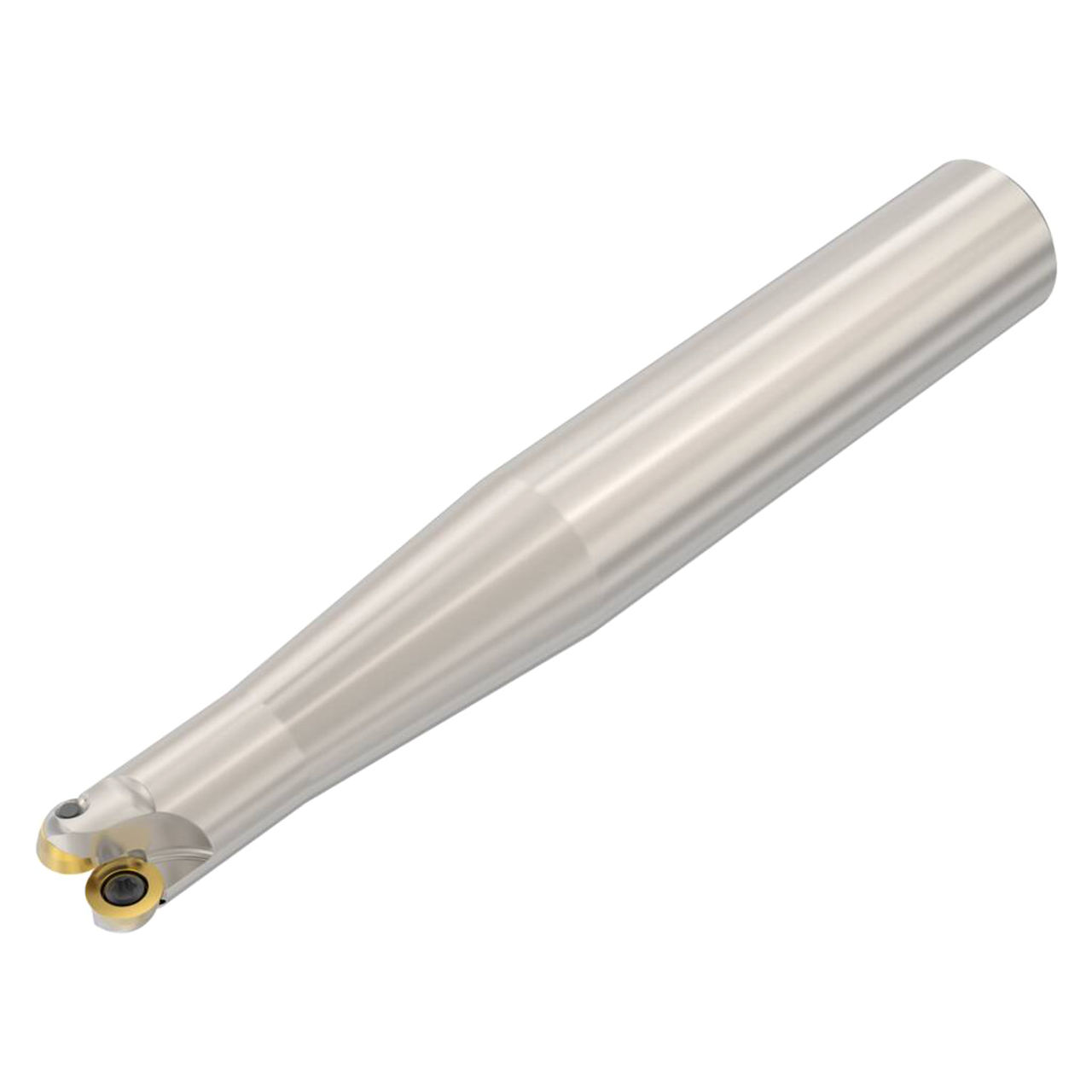

Product Specifications
| Manufacturer Part Number | 02427381 |
| Cutting Diameter (mm) | 14.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 16.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 38.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 34.00mm |
| Protruding Length (mm) | 100.00mm |
| Shank Length (mm) | 140.00mm |
| Overall Length (mm) | 160.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Cutting Pitch Density | Normal |
| Axial Rake Angle (Degree) | 3 Degree |
| Maximum Ramping Angle (Degree) | 9.84 Degree |
| Maximum Rotational Speed (rpm) | 25600 rpm |
| Insert Shape Code | R |
| Shank Type | Cylindrical |
| Product Type | Copy Mill Round Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
43/78"
Cutting Diameter (Decimal Inch):
0.5512"
Cutting Diameter (mm):
14.00mm
Maximum Depth of Cut (Inch):
2/17"
Maximum Depth of Cut (Decimal Inch):
0.1181"
Maximum Depth of Cut (mm):
3.00mm
