Product Specifications
| Manufacturer Part Number | 02445748 |
| Insert Length (Decimal Inch) | 0.669" |
| Insert Length (mm) | 17.00mm |
| Cutting Width (Decimal Inch) | 0.098" |
| Cutting Width (mm) | 2.50mm |
| Corner Radius (Decimal Inch) | 0.007" |
| Corner Radius (mm) | 0.18mm |
| Insert Thickness (Decimal Inch) | 0.118" |
| Insert Thickness (mm) | 3.00mm |
| Thread Form Type | ISO |
| Cutting Edge Count | 1 |
| Insert Hand | Neutral |
| Tooth Count | 6 |
| Profile Included Angle (Degree) | 60 Degree |

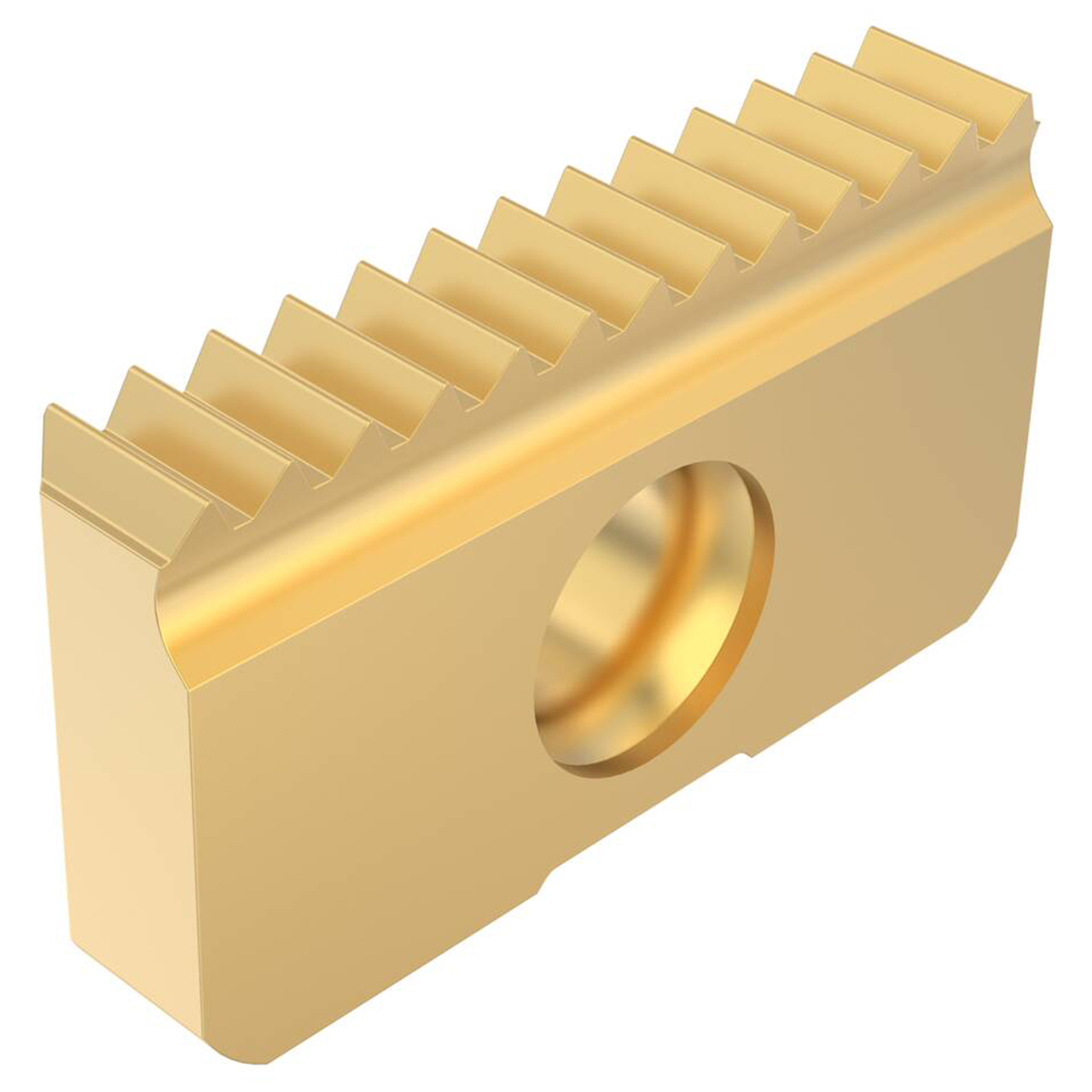

| Product Type | Thread Mill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Length (Inch):
43/64"
Length (Decimal Inch):
0.6690"
Length (mm):
17.00mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1180"
Thickness (mm):
3.00mm
Corner Radius (Decimal Inch):
0.0070"
Corner Radius (mm):
0.18mm
