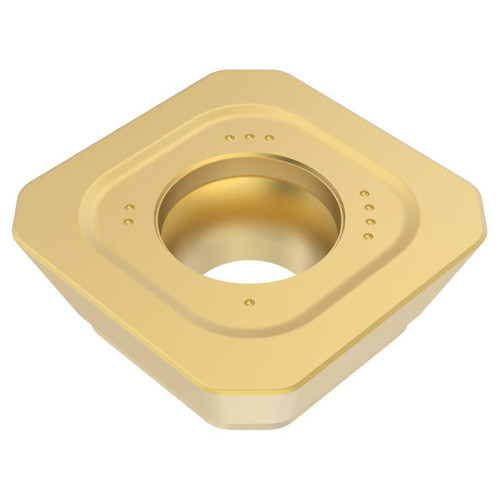

Seco Tools 02656070 | 0.625" Inscribed Circle Diameter x 0.059" Radius x 0.219" Thickness 4 Cutting Edge Carbide Quattromill Insert

$21.41
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2190"
Thickness (mm):
5.56mm
interval quantity:
1
SKU:
23279221
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 02656070 | 0.625" Inscribed Circle Diameter x 0.059" Radius x 0.219" Thickness 4 Cutting Edge Carbide Quattromill Insert

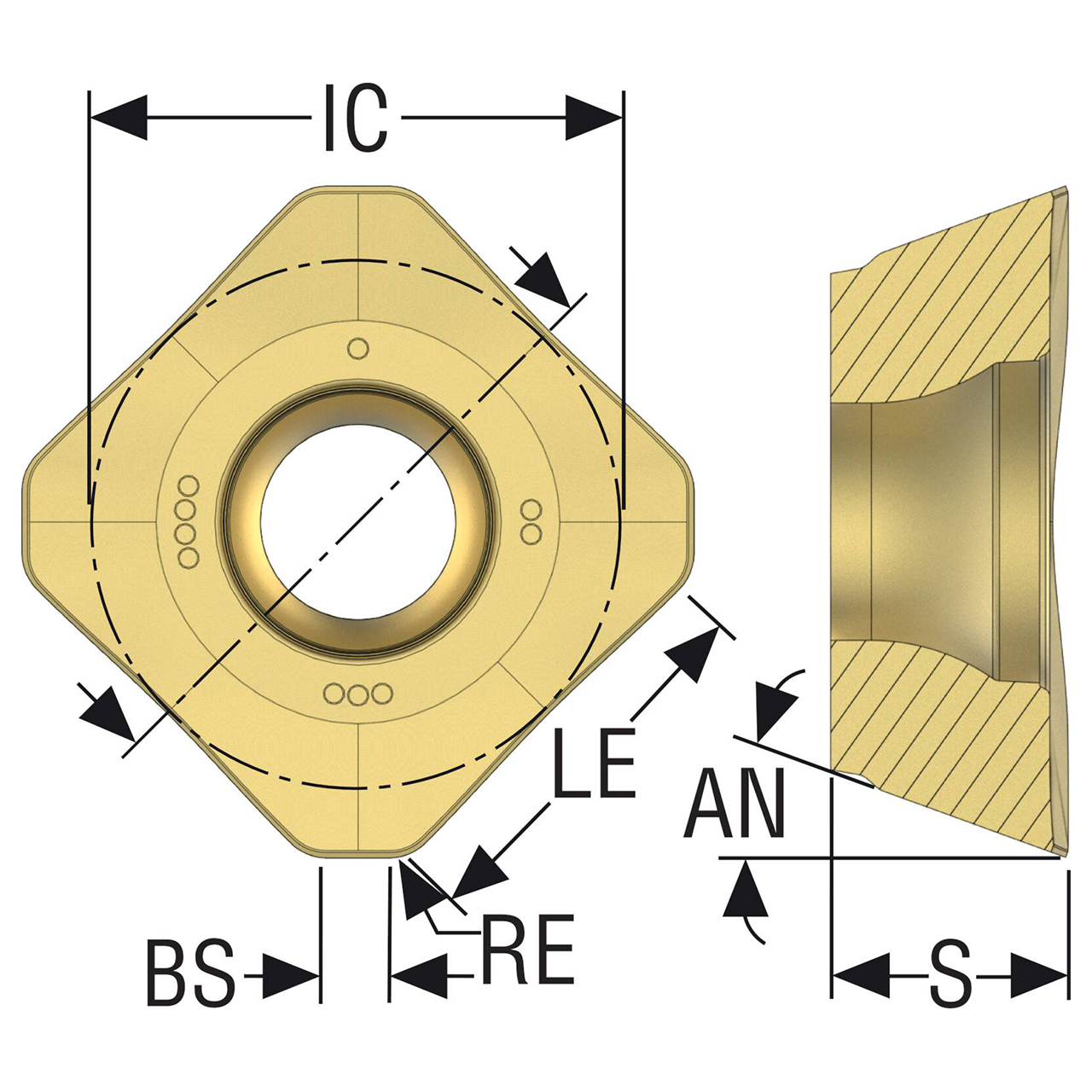

Product Specifications
Manufacturer Part Number02656070
Fixing Hole Diameter (Decimal Inch)0.221"
Fixing Hole Diameter (mm)5.60mm
Inscribed Circle Diameter (Decimal Inch)0.625"
Inscribed Circle Diameter (mm)15.88mm
Wiper Edge Length (Decimal Inch)0.071"
Wiper Edge Length (mm)1.80mm
Cutting Edge Effective Length (Decimal Inch)0.406"
Cutting Edge Effective Length (mm)10.30mm
Corner Chamfer Width (Decimal Inch)0.005"
Corner Chamfer Width (mm)0.12mm
Corner Radius (Decimal Inch)0.059"
Corner Radius (mm)1.50mm
Insert Thickness (Decimal Inch)0.219"
Insert Thickness (mm)5.56mm
Clearance Angle Major (Degree)20 Degree
Cutting Edge Count4
Cutting Geometry TypeMD
Cutting Geometry Type TechnicalMD20
Pocket Seat Code of The CutterSE.X1505
Insert Size And ShapeSEMX1505
Insert HandNeutral
MaterialCarbide
Product TypeQuattromill Insert
