Product Specifications
| Manufacturer Part Number | 02926807 |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Contact Surface Diameter Machine Side (mm) | 35.00mm |
| Shank Diameter (mm) | 20.00mm |
| Protruding Length (mm) | 50.00mm |
| Shank Length (mm) | 50.00mm |
| Overall Length (mm) | 100.00mm |
| Maximum Depth of Cut (mm) | 36.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -26 Degree |
| Rake Radial Angle (Degree) | -26 Degree |
| Rake Orthogonal Angle (Degree) | -26 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Rotational Speed (rpm) | 20800 rpm |
| Insert Shape Code | L |
| Shank Type | SecoWeldon |

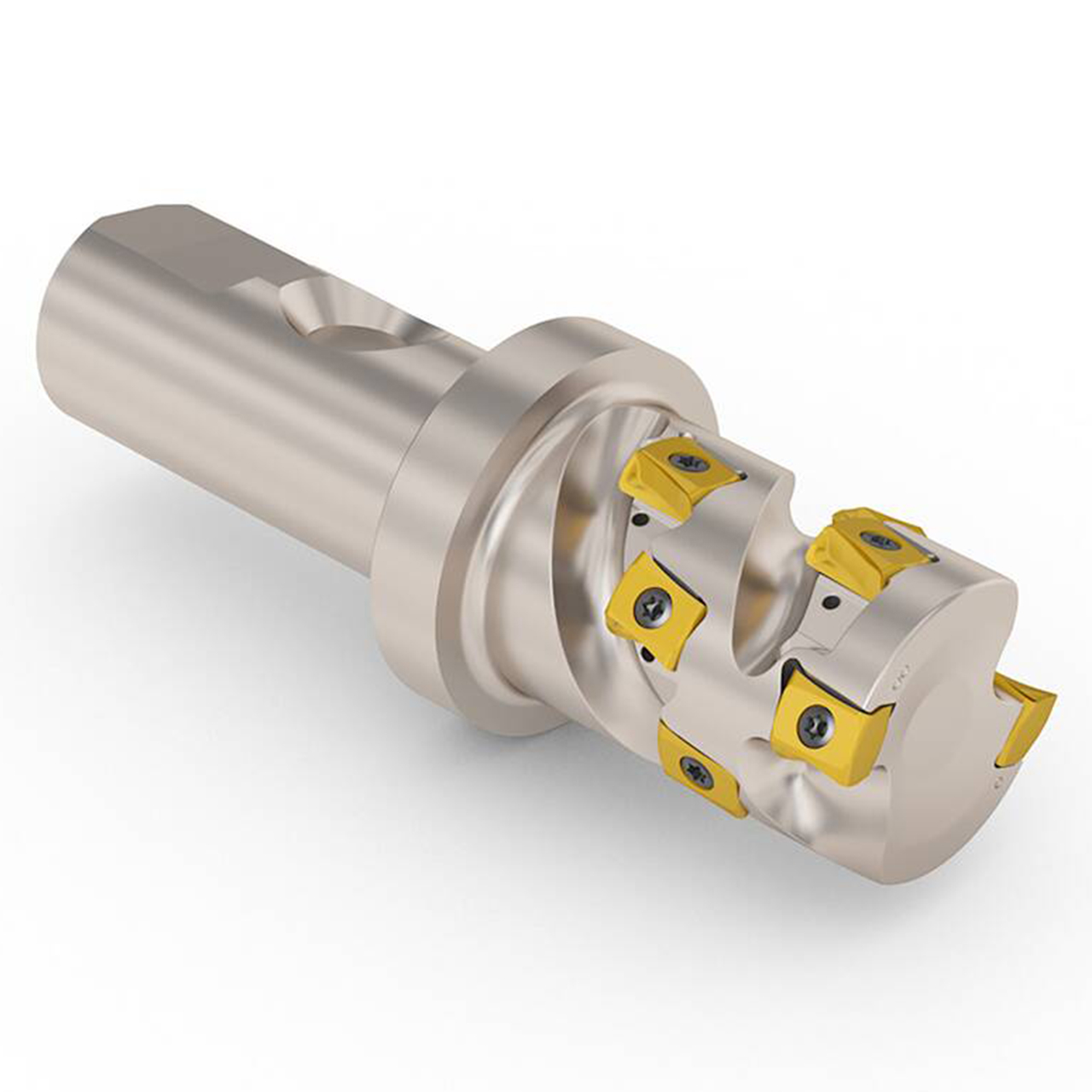

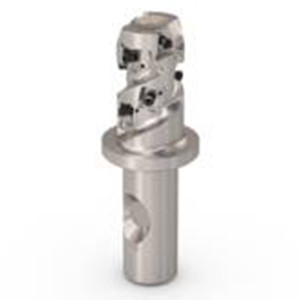

| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
63/64"
Cutting Diameter (Decimal Inch):
0.9843"
Cutting Diameter (mm):
25.00mm
Maximum Depth of Cut (Inch):
1-5/12"
Maximum Depth of Cut (Decimal Inch):
1.4173"
Maximum Depth of Cut (mm):
36.00mm
interval quantity:
1
