Product Specifications
| Manufacturer Part Number | 02926819 |
| Cutting Diameter (mm) | 44.00mm |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Functional Length (mm) | 90.00mm |
| Overall Length (mm) | 114.00mm |
| Maximum Depth of Cut (mm) | 57.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -24 Degree |
| Rake Radial Angle (Degree) | -24 Degree |
| Rake Orthogonal Angle (Degree) | -24 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Rotational Speed (rpm) | 15500 rpm |
| Insert Shape Code | L |
| Shank Type | Seco-Capto |

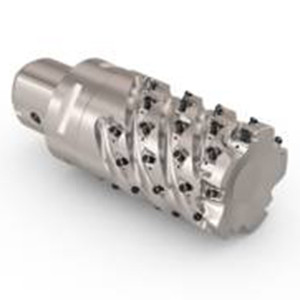

| Product Type | Indexable Square Shoulder Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-52/71"
Cutting Diameter (Decimal Inch):
1.7323"
Cutting Diameter (mm):
44.00mm
Maximum Depth of Cut (Inch):
2-21/86"
Maximum Depth of Cut (Decimal Inch):
2.2441"
Maximum Depth of Cut (mm):
57.00mm
