Product Specifications
| Manufacturer Part Number | 02980628 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Body Diameter (mm) | 16.00mm |
| Functional Length (mm) | 65.00mm |
| Protruding Length (mm) | 40.50mm |
| Shank Length (mm) | 52.00mm |
| Overall Length (mm) | 90.00mm |
| Cutting Width (mm) | 13.91mm |
| Maximum Depth of Cut (mm) | 13.91mm |
| Maximum Cutting Depth (mm) | 7.44mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -14 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 17600 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LNK.0605 / LNK.0805 |
| Coolant Exit Style Code | 2 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

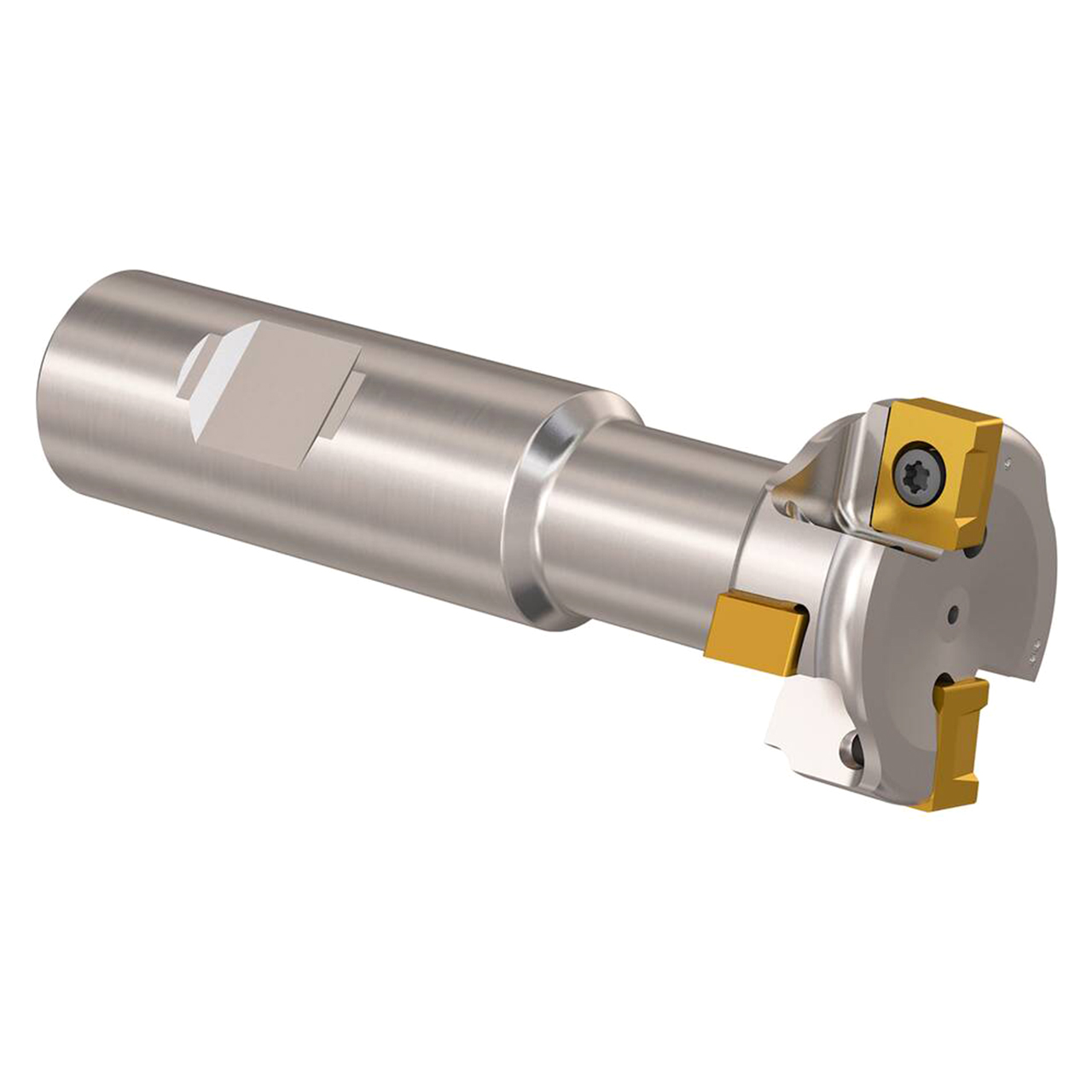

| Product Type | Indexable T-Slot Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-17/64"
Cutting Diameter (Decimal Inch):
1.2600"
Cutting Diameter (mm):
32.00mm
Cutting Width (Inch):
35/64"
Cutting Width (Decimal Inch):
0.5500"
Cutting Width (mm):
13.91mm
Shank Diameter (Inch):
25/32"
Shank Diameter (Decimal Inch):
0.7900"
Shank Diameter (mm):
20.00mm
interval quantity:
1
