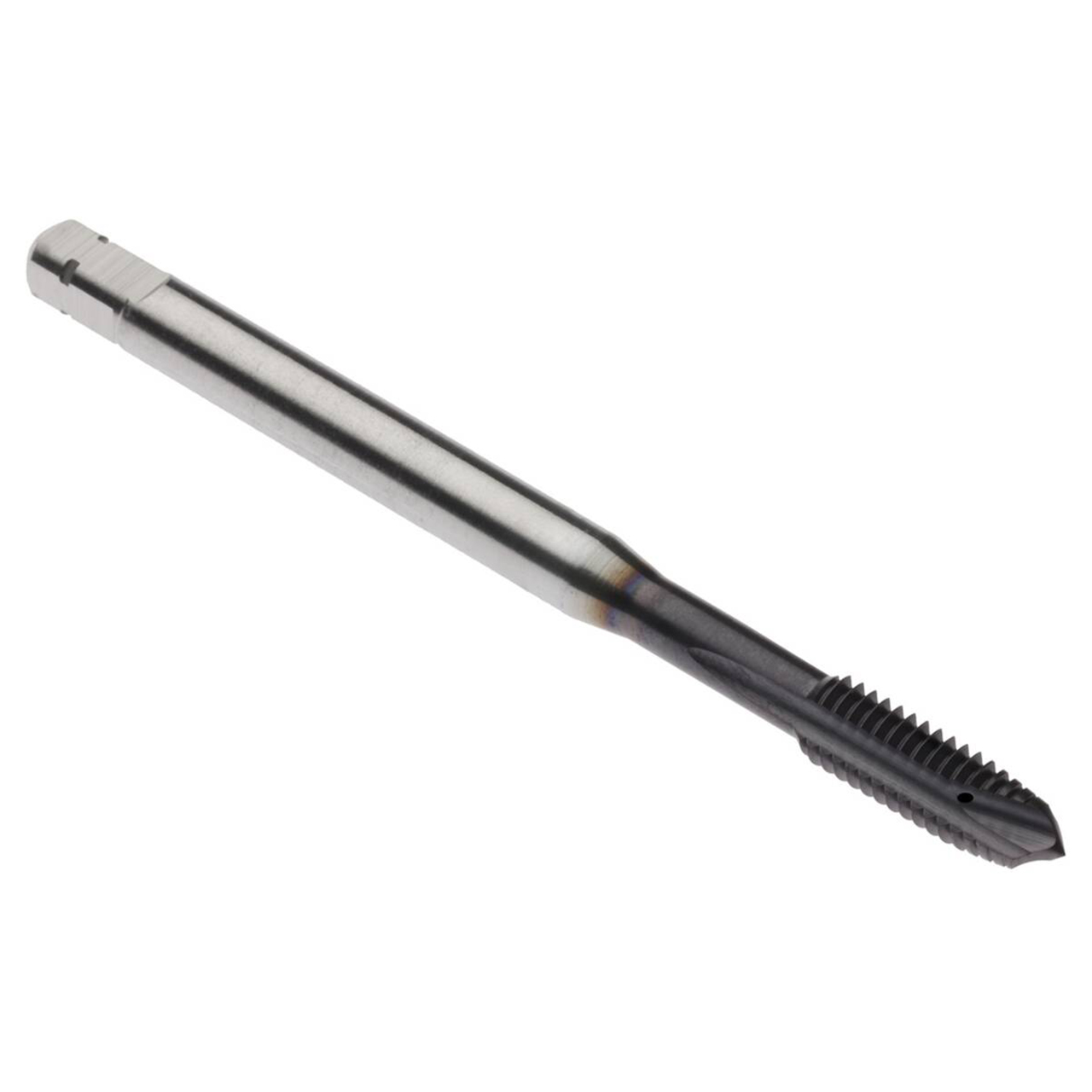

Seco Tools 02999929 | MTP-M4X0.70ISO6HX-TB-P003-A M4 Thread Size x 0.158" Diameter x 0.177" Shank x 2.480" OAL 3 Flute AlTiN Coated HSS-E-PM Spiral Point Tap

$60.51
Brand:
Seco Tools
Thread Size:
M4
Number of Flutes:
3
Thread Standard:
M
Finish/Coating:
AlTiN
Material:
HSS-E-PM
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
17993384
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 02999929 | MTP-M4X0.70ISO6HX-TB-P003-A M4 Thread Size x 0.158" Diameter x 0.177" Shank x 2.480" OAL 3 Flute AlTiN Coated HSS-E-PM Spiral Point Tap

Product Specifications
Manufacturer Part Number02999929
Thread Diameter (Decimal Inch)0.158"
Thread Diameter (mm)4.00mm
Threading Chamfer Length (Decimal Inch)0.138"
Threading Chamfer Length (mm)3.50mm
Tap Chamfer Length (Decimal Inch)0.129"
Tap Chamfer Length (mm)3.27mm
Connection Diameter Machine Side (Decimal Inch)0.177"
Connection Diameter Machine Side (mm)4.50mm
Shank Diameter (Decimal Inch)0.177"
Shank Diameter (mm)4.50mm
Functional Length (Decimal Inch)2.352"
Functional Length (mm)59.73mm
Usable Length (Decimal Inch)0.827"
Usable Length (mm)21.00mm
Overall Length (Decimal Inch)2.480"
Overall Length (mm)63.00mm
Thread Length (Decimal Inch)0.461"
Thread Length (mm)11.70mm
Thread Diameter SizeM4
Recommended Premachined Hole Diameter (Decimal Inch)0.134"
Recommended Premachined Hole Diameter (mm)3.40mm
Connection Size Code4.50X3.40
Connection Size Code Machine Side4.50X3.40
Maximum Premachined Hole Diameter (Decimal Inch)0.135"
Maximum Premachined Hole Diameter (mm)3.42mm
Minimum Thread Pitch (Decimal Inch)0.028"
Minimum Thread Pitch (mm)0.70mm
Maximum Thread Pitch (Decimal Inch)0.028"
Maximum Thread Pitch (mm)0.70mm
Number of Flute3
Coolant Entry Style Code1
Coolant Supply Property1
Coolant Exit Style Code2
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeB
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-P
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingAlTiN
Product TypeSpiral Point Tap
