Product Specifications
| Manufacturer Part Number | 03029360 |
| Body Diameter (Decimal Inch) | 1.969" |
| Body Diameter (mm) | 50.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 3.150" |
| Connection Diameter Machine Side (mm) | 80.00mm |
| Shank Diameter (Decimal Inch) | 3.150" |
| Shank Diameter (mm) | 80.00mm |
| Body Length (Decimal Inch) | 9.252" |
| Body Length (mm) | 235.00mm |
| Body Length 1 (Decimal Inch) | 9.252" |
| Body Length 1 (mm) | 235.00mm |
| Body Length 2 (Decimal Inch) | 8.858" |
| Body Length 2 (mm) | 225.00mm |
| Functional Length (Decimal Inch) | 10.551" |
| Functional Length (mm) | 268.00mm |
| Shank Length (Decimal Inch) | 1.890" |
| Shank Length (mm) | 48.00mm |
| Overall Length (Decimal Inch) | 12.732" |
| Overall Length (mm) | 323.40mm |
| Data Chip Provision | 1 |
| Maximum Rotational Speed (rpm) | 6000 rpm |

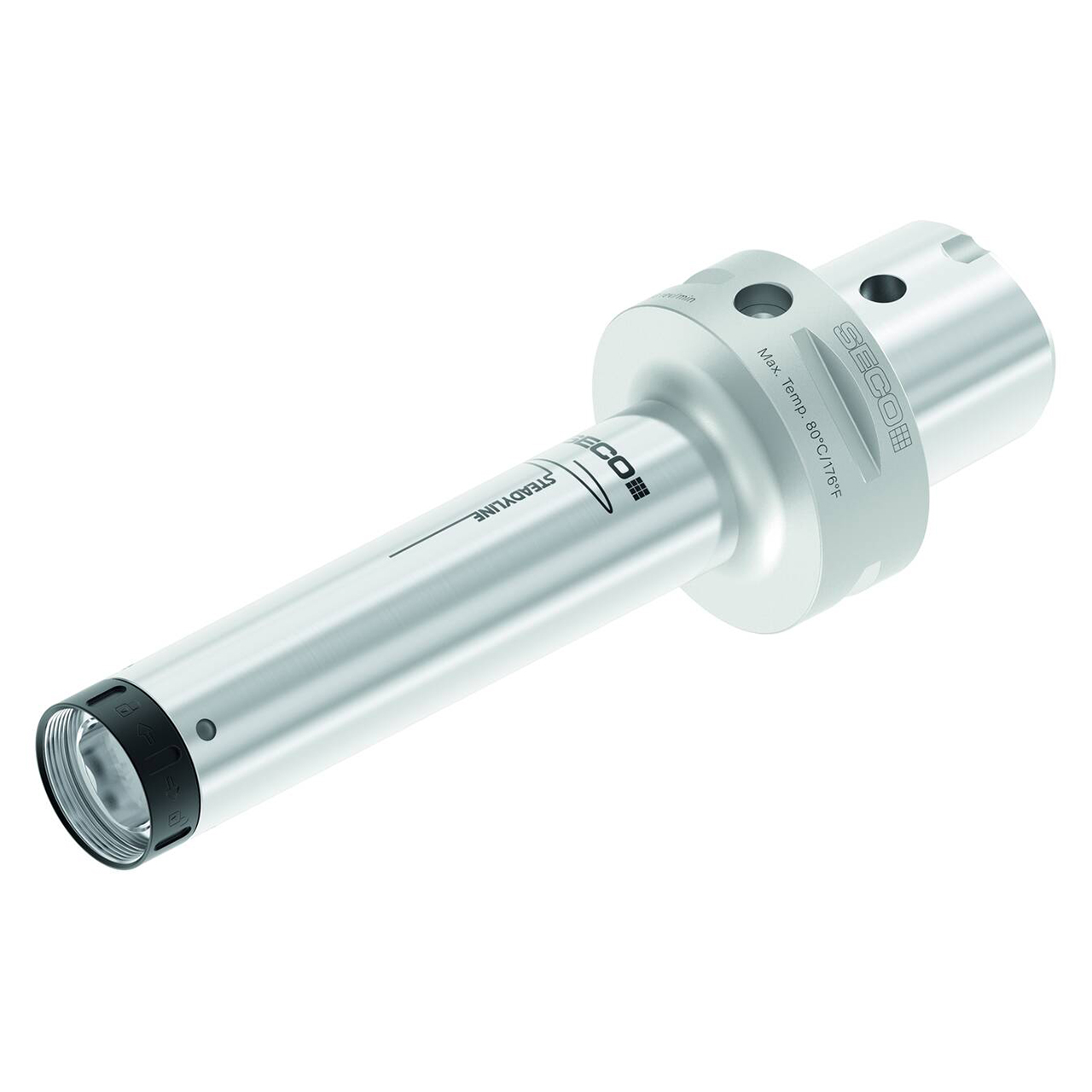

| Product Type | Collet Chuck Extension Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-31/32"
Body Diameter (Decimal Inch):
1.9690"
Body Diameter (mm):
50.00mm
Overall Length (Inch):
12-71/97"
Overall Length (Decimal Inch):
12.7320"
Overall Length (mm):
323.40mm
interval quantity:
1
