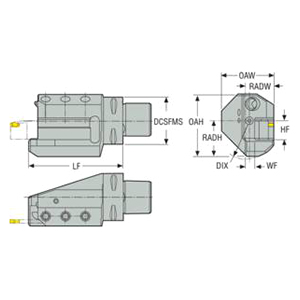

Product Specifications
| Manufacturer Part Number | 03142924 |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Maximum Tool Changer Interference Diameter (Decimal Inch) | 3.347" |
| Maximum Tool Changer Interference Diameter (mm) | 85.00mm |
| Functional Height (Decimal Inch) | 0.787" |
| Functional Height (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 3.740" |
| Functional Length (mm) | 95.00mm |
| Overall Height (Decimal Inch) | 2.717" |
| Overall Height (mm) | 69.00mm |
| Overall Width (Decimal Inch) | 2.185" |
| Overall Width (mm) | 55.50mm |
| Functional Width (Decimal Inch) | 0.394" |
| Functional Width (mm) | 10.00mm |
| Workpiece Side Body Angle (Degree) | 18 Degree |
| Machine Side Group | Capto |
| Radial Body Height (Decimal Inch) | 1.457" |
| Radial Body Width (Decimal Inch) | 1.181" |
| Radial Body Width (mm) | 30.00mm |
| Version (Internal/External/Both) | External |
| Product Type | Modular Tool Holding System Adapter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
interval quantity:
1
