Product Specifications

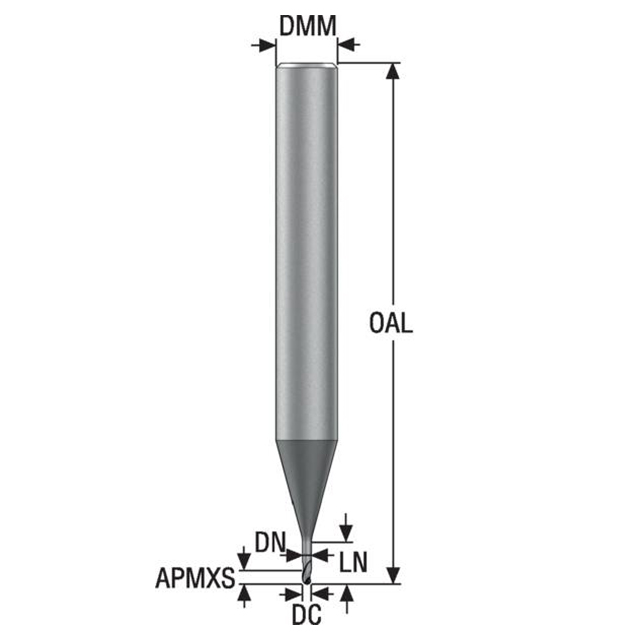

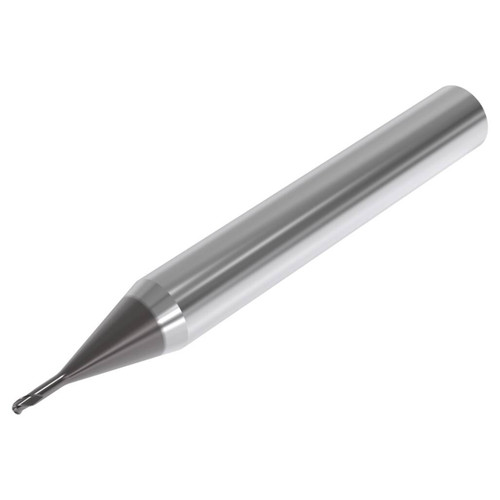

| Manufacturer Part Number | 03171308 |
| Cutting Diameter (mm) | 1.20mm |
| Cutting Diameter 1 (mm) | 1.20mm |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 1.15mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 2.16mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 1.56mm |
| Overall Length (mm) | 50.00mm |
| Neck Length (mm) | 4.50mm |
| Neck Length 1 (mm) | 4.50mm |
| Cutting Edge Effective Length (mm) | 1.20mm |
| Maximum Depth of Cut (mm) | 1.20mm |
| Corner Radius (mm) | 0.60mm |
| Shank Type | Cylindrical |
| Collision Angle (Degree) | 10.67 Degree |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | JMB563 |
| Cutting Geometry Type Technical | JMB563 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Direction | Right |
| Axial Rake Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | SIRON-A |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
1/21"
Mill Diameter (Decimal Inch):
0.0472"
Mill Diameter (mm):
1.20mm
Number of Flutes:
3
Corner Radius (Inch):
2/85"
Corner Radius (Decimal Inch):
0.0236"
Corner Radius (mm):
0.60mm
Shank Type:
Cylindrical
Material:
Carbide
Finish/Coating:
SIRON-A
Shank Diameter (Inch):
17/72"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Overall Length (Inch):
1-92/95"
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Cutting Direction:
Right Hand
interval quantity:
1
