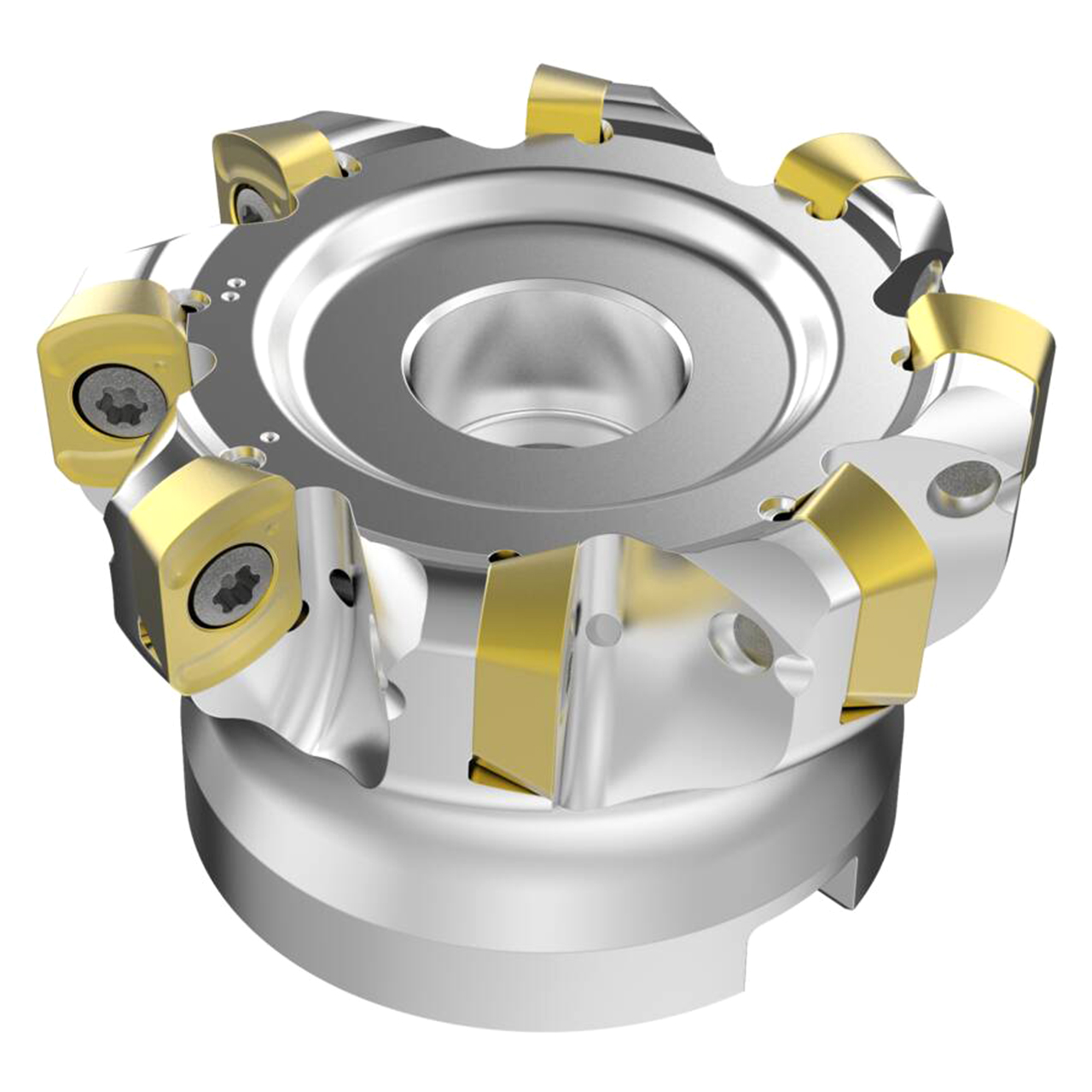

Product Specifications
| Manufacturer Part Number | 03212895 |
| Cutting Diameter (mm) | 50.10mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Maximum Cutting Diameter (mm) | 63.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 124.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 113.10mm |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 1.87mm |
| Depth of Key Way (mm) | 6.30mm |
| Keyway Width (mm) | 6.30mm |
| Programming Radius (mm) | 3.47mm |
| Uncut Thickness (mm) | 0.7 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 2 Degree |
| Maximum Ramping Angle (Degree) | 1.6 Degree |
| Maximum Rotational Speed (rpm) | 22100 rpm |
| Insert Shape Code | L |
| Shank Type | Arbor |
| Product Type | Indexable High-Feed End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
1-35/36"
Cutting Diameter (Decimal Inch):
1.9724"
Cutting Diameter (mm):
50.10mm
Maximum Depth of Cut (Inch):
5/68"
Maximum Depth of Cut (Decimal Inch):
0.0736"
Maximum Depth of Cut (mm):
1.87mm
Shank Type:
Arbor
