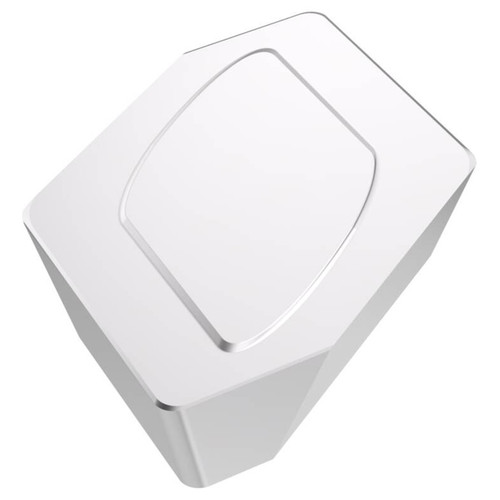

Seco Tools 03272661 | 0.750" Inscribed Circle Diameter x 0.118" Radius x 0.250" Thickness 4 Cutting Edge Carbide Milling Insert

$40.75
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
interval quantity:
1
SKU:
23286984
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Seco Tools 03272661 | 0.750" Inscribed Circle Diameter x 0.118" Radius x 0.250" Thickness 4 Cutting Edge Carbide Milling Insert

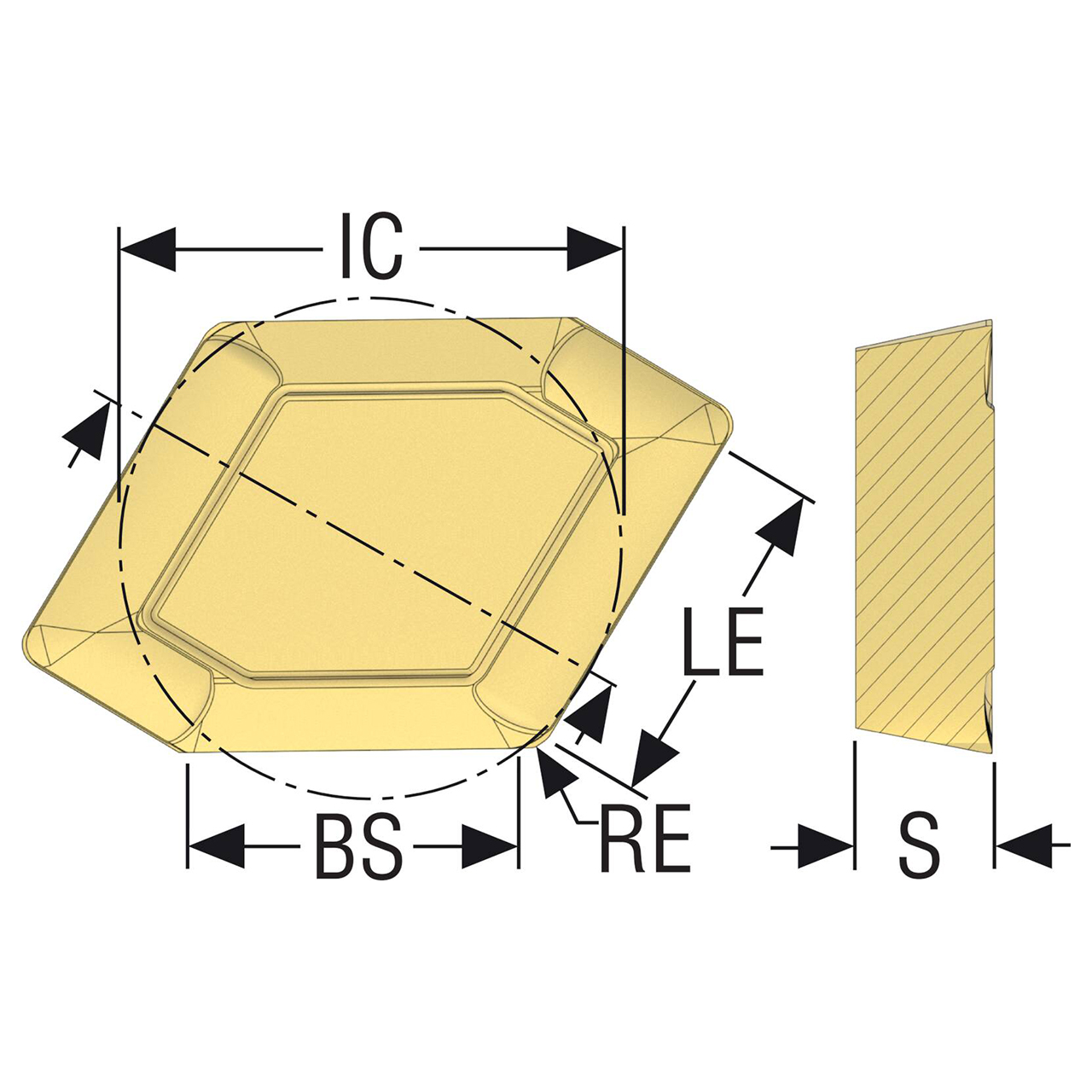

Product Specifications
Manufacturer Part Number03272661
Inscribed Circle Diameter (Decimal Inch)0.750"
Inscribed Circle Diameter (mm)19.05mm
Wiper Edge Length (Decimal Inch)0.472"
Wiper Edge Length (mm)12.00mm
Cutting Edge Effective Length (Decimal Inch)0.551"
Cutting Edge Effective Length (mm)14.00mm
Corner Radius (Decimal Inch)0.118"
Corner Radius (mm)3.00mm
Insert Thickness (Decimal Inch)0.250"
Insert Thickness (mm)6.35mm
Clearance Angle Major (Degree)11 Degree
Cutting Edge Count4
Cutting Geometry Type TechnicalD25
Pocket Seat Code of The CutterSP..1906Z..R
Insert Size And ShapeSPEN1906ZZ.R
Insert HandRight Hand
MaterialCarbide
Product TypeMilling Insert
