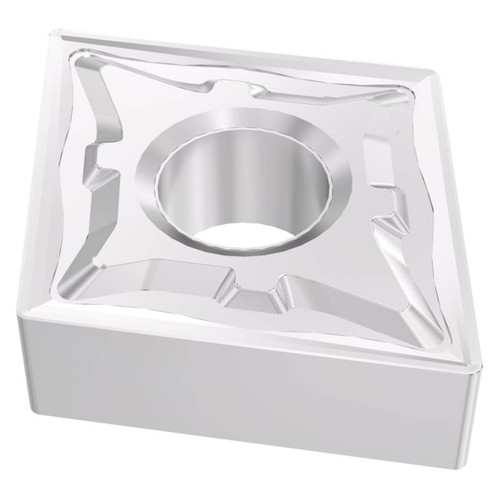

Seco Tools 03273932 |CNMG160616-M5 0.625" Inscribed Circle Diameter x 0.063" Corner Radius x 0.250" Thickness 4 Cutting Edge Carbide Turning Insert

$23.38
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.88mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
interval quantity:
1
SKU:
23287299
Weight:
0.04 LBS
Shipping:
Calculated at Checkout
Seco Tools 03273932 |CNMG160616-M5 0.625" Inscribed Circle Diameter x 0.063" Corner Radius x 0.250" Thickness 4 Cutting Edge Carbide Turning Insert

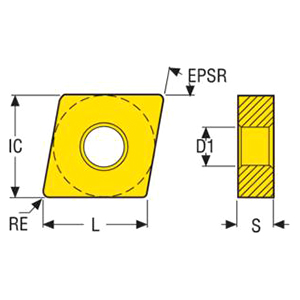

Product Specifications
Manufacturer Part Number03273932
Fixing Hole Diameter (Decimal Inch)0.250"
Fixing Hole Diameter (mm)6.35mm
Inscribed Circle Diameter (Decimal Inch)0.625"
Inscribed Circle Diameter (mm)15.88mm
Cutting Edge Effective Length (Decimal Inch)0.570"
Cutting Edge Effective Length (mm)14.48mm
Theoretical Cutting Edge Length (Decimal Inch)0.635"
Theoretical Cutting Edge Length (mm)16.12mm
Corner Radius (Decimal Inch)0.063"
Corner Radius (mm)1.60mm
Insert Thickness (Decimal Inch)0.250"
Insert Thickness (mm)6.35mm
Cutting Edge Count4
Insert Included Angle (Degree)80 Degree
Insert HandNeutral
Insert Size And ShapeCN1606
Insert Shape CodeC
MaterialCarbide
Product TypeTurning Insert
