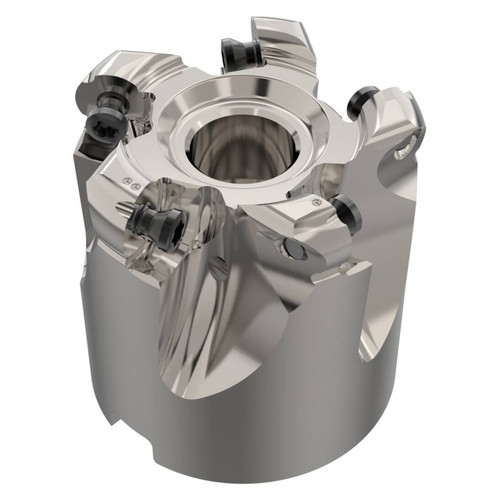

Seco Tools 03278813 | R220.29I-01.50-05.5A 28.09mm Diameter x 38.10mm Functional Length Indexable Copy End Mill

$723.62
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
1/2"";Inscribed Circle (Decimal Inch)=0.5000""""
Inscribed Circle (mm):
12.70mm
Thickness (Inch):
3/16"";Thickness (Decimal Inch)=0.1870""""
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/64"";Corner Radius (Decimal Inch)=0.0080""""
Corner Radius (mm):
0.20mm
interval quantity:
1
SKU:
23287849
Weight:
0.52 LBS
Shipping:
Free Shipping
Seco Tools 03278813 | R220.29I-01.50-05.5A 28.09mm Diameter x 38.10mm Functional Length Indexable Copy End Mill

Product Specifications
Manufacturer Part Number03278813
Cutting Diameter (Decimal Inch)1.106"
Cutting Diameter (mm)28.09mm
Connection Bore Diameter (Decimal Inch)0.500"
Connection Bore Diameter (mm)12.70mm
Contact Surface Diameter Machine Side (Decimal Inch)1.339"
Contact Surface Diameter Machine Side (mm)34.00mm
Maximum Cutting Diameter (Decimal Inch)1.500"
Maximum Cutting Diameter (mm)38.10mm
Maximum Helical Interpolation Hole Diameter (Decimal Inch)2.921"
Maximum Helical Interpolation Hole Diameter (mm)74.20mm
Minimum Helical Interpolation Hole Diameter (Decimal Inch)2.606"
Minimum Helical Interpolation Hole Diameter (mm)66.18mm
Functional Length (Decimal Inch)1.500"
Functional Length (mm)38.10mm
Maximum Depth of Cut (mm)5.00mm
Maximum Depth of Cut (Decimal Inch)0.197"
Depth of Key Way (Decimal Inch)0.158"
Depth of Key Way (mm)4.00mm
Keyway Width (Decimal Inch)0.258"
Keyway Width (mm)6.55mm
Coolant Entry Style Code1
Cutting Pitch DensityNormal
Coolant Supply Property1
Coolant Exit Style Code3
Axial Rake Angle (Degree)4 Degree
Maximum Ramping Angle (Degree)6.5 Degree
Maximum Rotational Speed (rpm)14000 rpm
Insert Shape CodeR
Shank TypeArbor
Product TypeIndexable Copy End Mill
