Product Specifications
| Manufacturer Part Number | 03290254 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 5.906" |
| Maximum Helical Interpolation Hole Diameter (mm) | 150.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 5.394" |
| Minimum Helical Interpolation Hole Diameter (mm) | 137.00mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.591" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -19.7 Degree |
| Rake Radial Angle (Degree) | -19.7 Degree |
| Rake Orthogonal Angle (Degree) | -19.7 Degree |
| Axial Rake Angle (Degree) | -1 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 0.1 Degree |
| Maximum Rotational Speed (rpm) | 7200 rpm |
| Shank Type | Arbor |

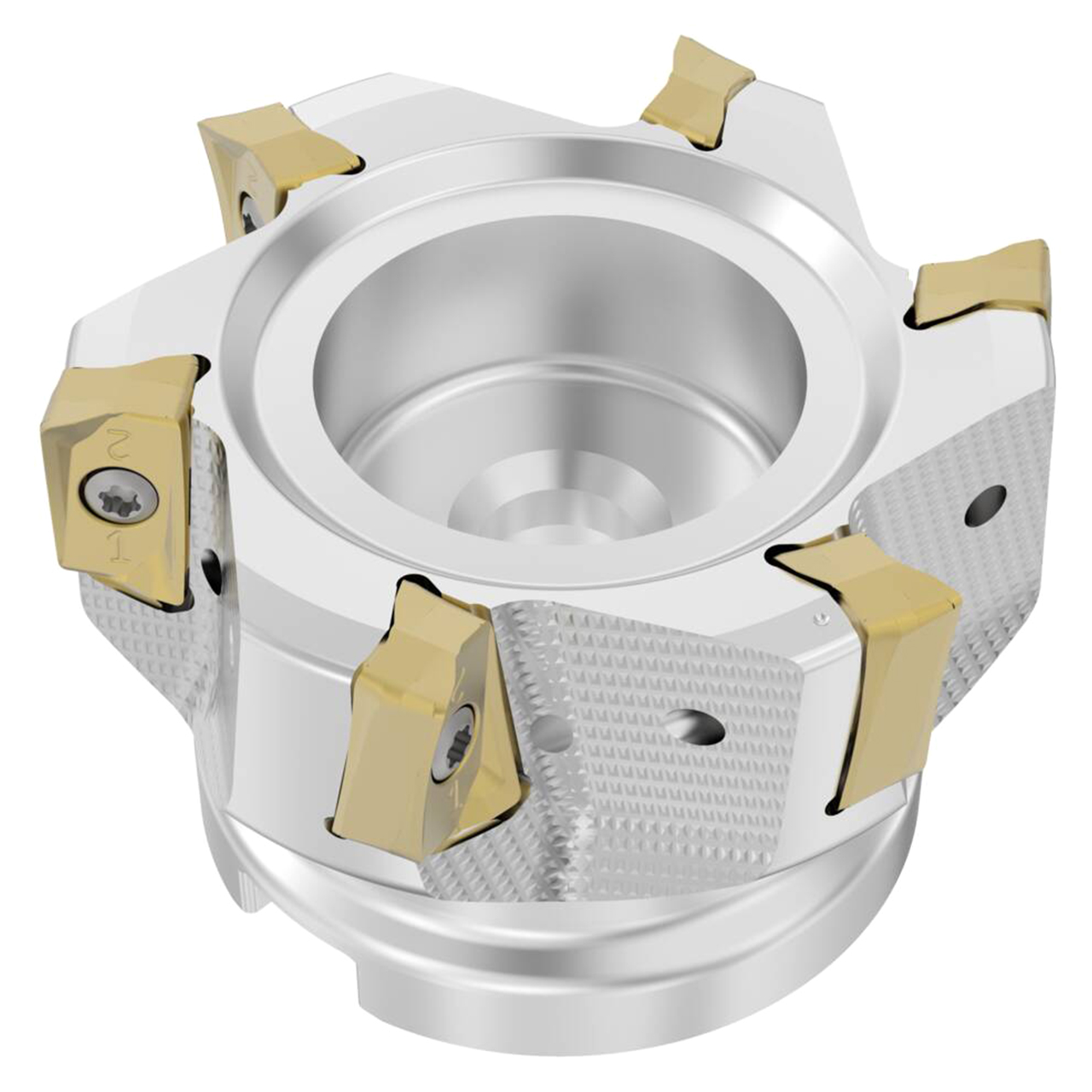

| Product Type | Indexable Square-Shoulder Face Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
3"
Cutting Diameter (Decimal Inch):
3.0000"
Cutting Diameter (mm):
76.20mm
Maximum Depth of Cut (Inch):
13/22"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
