Seco Tools 03290926 | ZOMX1607 Size x 0.032" Radius x 0.291" Thickness 4 Cutting Edge Carbide Square Shoulder Milling Insert

$24.49
Brand:
Seco Tools
Material:
Carbide
Thickness (Inch):
16/55"
Thickness (Decimal Inch):
0.2910"
Thickness (mm):
7.38mm
interval quantity:
1
SKU:
23288197
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Seco Tools 03290926 | ZOMX1607 Size x 0.032" Radius x 0.291" Thickness 4 Cutting Edge Carbide Square Shoulder Milling Insert

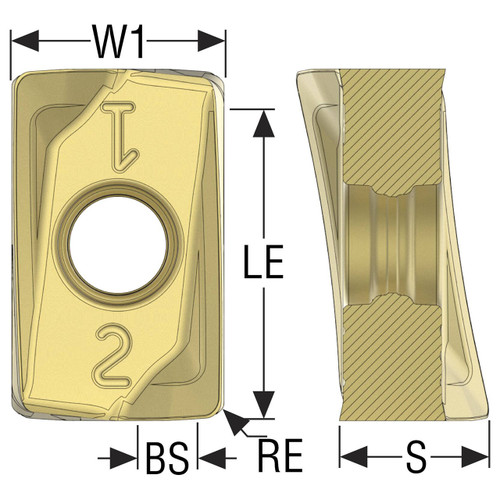

Product Specifications
Manufacturer Part Number03290926
Fixing Hole Diameter (Decimal Inch)0.189"
Fixing Hole Diameter (mm)4.80mm
Wiper Edge Length (Decimal Inch)0.079"
Wiper Edge Length (mm)2.00mm
Cutting Edge Effective Length (Decimal Inch)0.610"
Cutting Edge Effective Length (mm)15.50mm
Functional Width (Decimal Inch)0.234"
Functional Width (mm)5.95mm
Corner Radius (Decimal Inch)0.032"
Corner Radius (mm)0.80mm
Insert Thickness (Decimal Inch)0.291"
Insert Thickness (mm)7.38mm
Insert Thickness 1 (Decimal Inch)0.197"
Insert Thickness 1 (mm)5.00mm
Cutting Edge Count4
Cutting Geometry TypeME
Cutting Geometry Type TechnicalME10
Pocket Seat Code of The CutterZO.X1607
Insert Size And ShapeZOMX1607
Insert Rake Angle (Degree)39.1 Degree
Insert HandRight Hand
MaterialCarbide
Product TypeSquare Shoulder Milling Insert
