Seco Tools 10001109 | MTH-M8X1.25ISO6HX-BC-S001 M8 Thread Size x 0.320" Diameter x 0.315" Shank x 3.675" OAL 10 Degree Helix Angle 3 Flute Uncoated Coated HSS-E-PM Spiral Flute Tap

$66.45
Brand:
Seco Tools
Thread Size:
M8
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
Uncoated
Overall Length (Inch):
3-27/40"
Overall Length (Decimal Inch):
3.6750"
Overall Length (mm):
93.35mm
interval quantity:
1
SKU:
17993751
Weight:
0.07 LBS
Shipping:
Calculated at Checkout
Seco Tools 10001109 | MTH-M8X1.25ISO6HX-BC-S001 M8 Thread Size x 0.320" Diameter x 0.315" Shank x 3.675" OAL 10 Degree Helix Angle 3 Flute Uncoated Coated HSS-E-PM Spiral Flute Tap

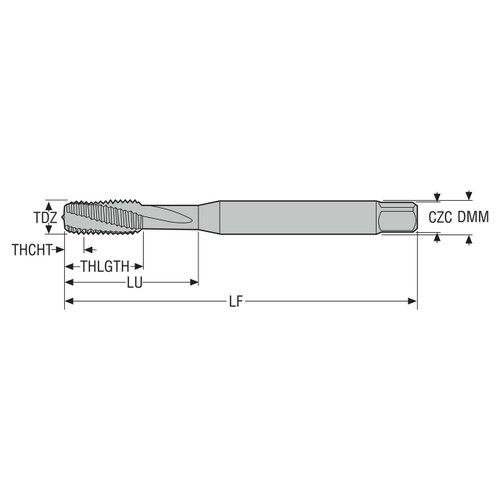

Product Specifications
Manufacturer Part Number10001109
Thread Diameter (Decimal Inch)0.320"
Thread Diameter (mm)8.14mm
Threading Chamfer Length (Decimal Inch)0.123"
Threading Chamfer Length (mm)3.13mm
Tap Chamfer Length (Decimal Inch)0.123"
Tap Chamfer Length (mm)3.13mm
Connection Diameter Machine Side (Decimal Inch)0.315"
Connection Diameter Machine Side (mm)8.00mm
Shank Diameter (Decimal Inch)0.315"
Shank Diameter (mm)8.00mm
Functional Length (Decimal Inch)3.420"
Functional Length (mm)86.87mm
Usable Length (Decimal Inch)0.807"
Usable Length (mm)20.50mm
Overall Length (Decimal Inch)3.675"
Overall Length (mm)93.35mm
Thread Length (Decimal Inch)0.807"
Thread Length (mm)20.50mm
Thread Diameter SizeM8
Recommended Premachined Hole Diameter (Decimal Inch)0.268"
Recommended Premachined Hole Diameter (mm)6.80mm
Connection Size Code8.00X6.20
Connection Size Code Machine Side8.00X6.20
Maximum Premachined Hole Diameter (Decimal Inch)0.272"
Maximum Premachined Hole Diameter (mm)6.91mm
Minimum Thread Pitch (Decimal Inch)0.049"
Minimum Thread Pitch (mm)1.25mm
Maximum Thread Pitch (Decimal Inch)0.049"
Maximum Thread Pitch (mm)1.25mm
Flute Helix Angle (Degree)10 Degree
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6HX
Threading Chamfer TypeC
Thread Form TypeM
Cutting DirectionRight Hand
Cutting Geometry TypeISO-S
Cutting Geometry Type TechnicalSpiral
MaterialHSS-E-PM
CoatingUncoated
Product TypeSpiral Flute Tap
