Product Specifications

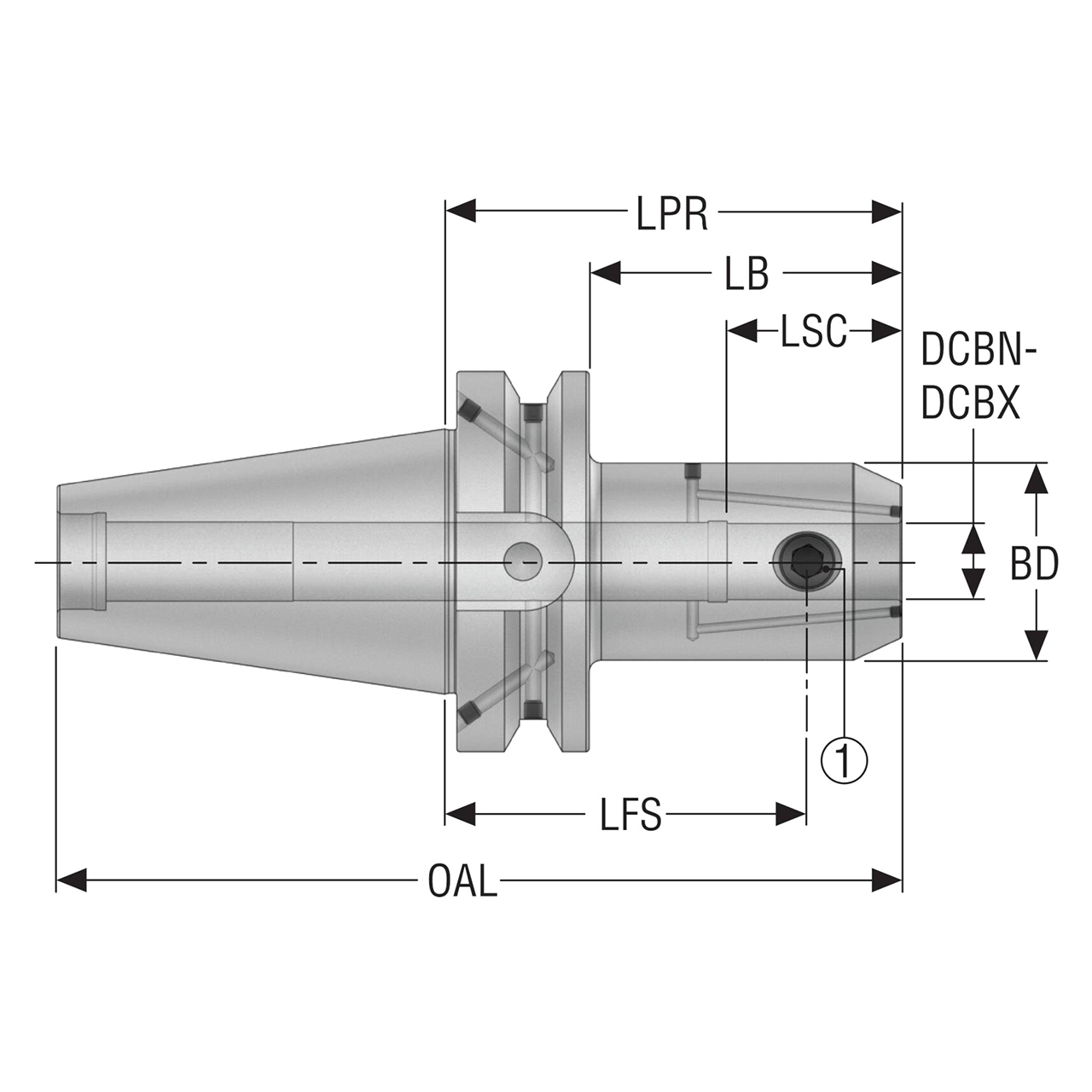

| Manufacturer Part Number | 10007212 |
| Body Diameter (Decimal Inch) | 1.732" |
| Body Diameter (mm) | 44.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Minimum Connection Bore Diameter (mm) | 14.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.551" |
| Maximum Connection Bore Diameter (mm) | 14.00mm |
| Body Length (Decimal Inch) | 1.417" |
| Body Length (mm) | 36.00mm |
| Functional Length Secondary (Decimal Inch) | 1.595" |
| Functional Length Secondary (mm) | 40.50mm |
| Protruding Length (Decimal Inch) | 2.480" |
| Protruding Length (mm) | 63.00mm |
| Clamping Length (Decimal Inch) | 1.614" |
| Clamping Length (mm) | 41.00mm |
| Overall Length (Decimal Inch) | 5.055" |
| Overall Length (mm) | 128.40mm |
| Data Chip Provision | 1 |
| Product Type | End Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Body Diameter (Inch):
1-71/97"
Body Diameter (Decimal Inch):
1.7320"
Body Diameter (mm):
44.00mm
Overall Length (Inch):
5-5/91"
Overall Length (Decimal Inch):
5.0550"
Overall Length (mm):
128.40mm
interval quantity:
1
