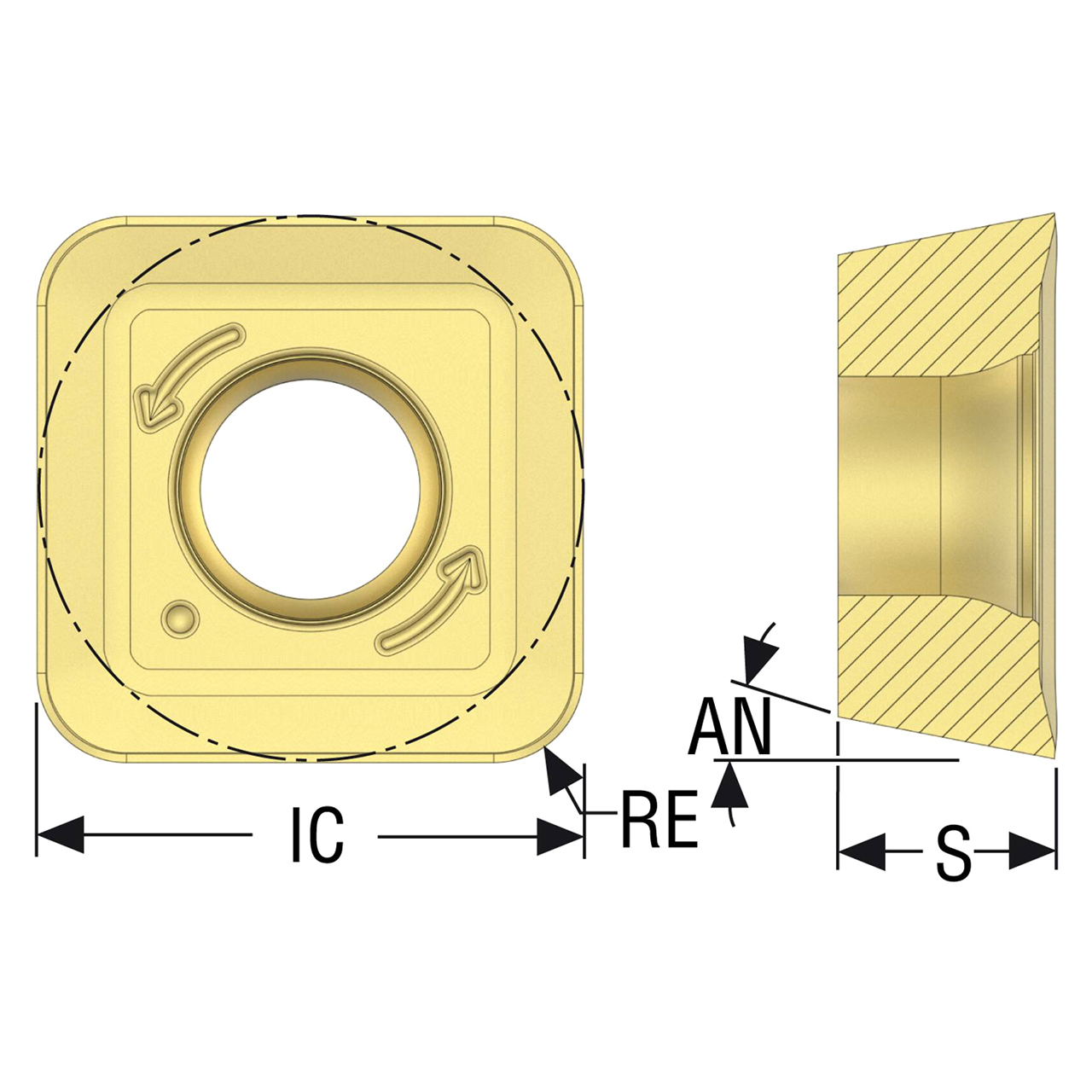

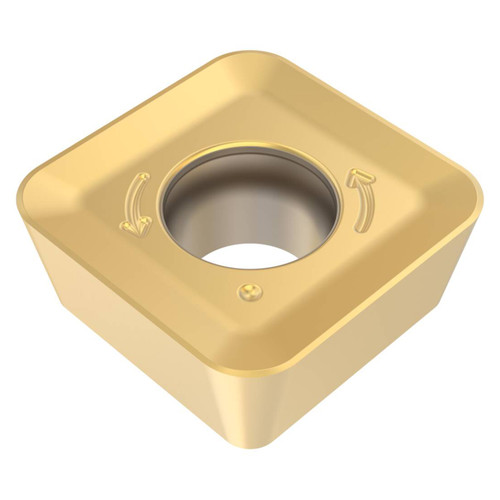

Seco Tools 10068956 |SPKT140523TN-M14 0.551" Inscribed Circle Diameter x 0.091" Corner Radius x 0.219" Thickness 4 Cutting Edge Carbide Milling Insert

$20.56
Brand:
Seco Tools
Material:
Carbide
Inscribed Circle (Inch):
43/78"
Inscribed Circle (Decimal Inch):
0.5512"
Inscribed Circle (mm):
14.00mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2189"
Thickness (mm):
5.56mm
interval quantity:
1
SKU:
23288782
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Seco Tools 10068956 |SPKT140523TN-M14 0.551" Inscribed Circle Diameter x 0.091" Corner Radius x 0.219" Thickness 4 Cutting Edge Carbide Milling Insert

Product Specifications
Manufacturer Part Number10068956
Fixing Hole Diameter (Decimal Inch)0.221"
Fixing Hole Diameter (mm)5.60mm
Inscribed Circle Diameter (Decimal Inch)0.551"
Inscribed Circle Diameter (mm)14.00mm
Cutting Edge Effective Length (Decimal Inch)0.461"
Cutting Edge Effective Length (mm)11.70mm
Theoretical Cutting Edge Length (Decimal Inch)0.551"
Theoretical Cutting Edge Length (mm)14.00mm
Corner Radius (Decimal Inch)0.091"
Corner Radius (mm)2.30mm
Insert Thickness (Decimal Inch)0.219"
Insert Thickness (mm)5.56mm
Cutting Edge Count4
Clearance Angle Major (Degree)11 Degree
Insert Rake Angle (Degree)13 Degree
Insert HandNeutral
Cutting Geometry TypeM
Cutting Geometry Type TechnicalM14
Pocket Seat Code of The CutterSPKT140523
Insert Size And ShapeSPKT140523
Insert Shape CodeS
MaterialCarbide
Product TypeMilling Insert
