Product Specifications
| Manufacturer Part Number | 10128161 |
| Cutting Diameter (Decimal Inch) | 2.500" |
| Cutting Diameter (mm) | 63.50mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 3.097" |
| Functional Length (mm) | 78.65mm |
| Overall Length (Decimal Inch) | 4.593" |
| Overall Length (mm) | 116.65mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Number of Flute | 4 |
| Insert Shape Code | S |
| Shank Type | Seco-Capto |

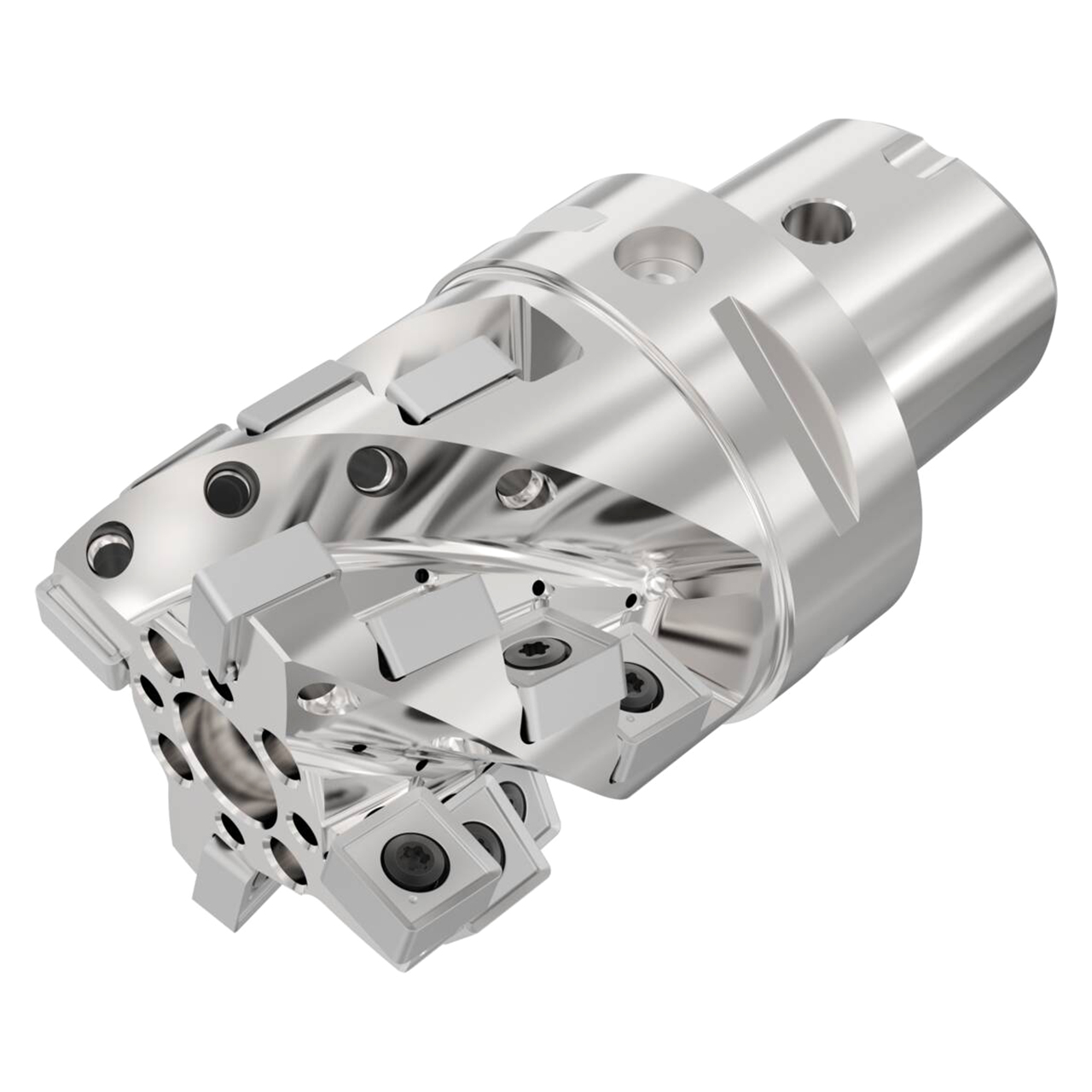

| Product Type | Indexable Square-Shoulder End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Cutting Diameter (Inch):
2-1/2"
Cutting Diameter (Decimal Inch):
2.5000"
Cutting Diameter (mm):
63.50mm
Shank Type:
Capto
Overall Length (Inch):
4-16/27"
Overall Length (Decimal Inch):
4.5925"
Overall Length (mm):
116.65mm
interval quantity:
1
