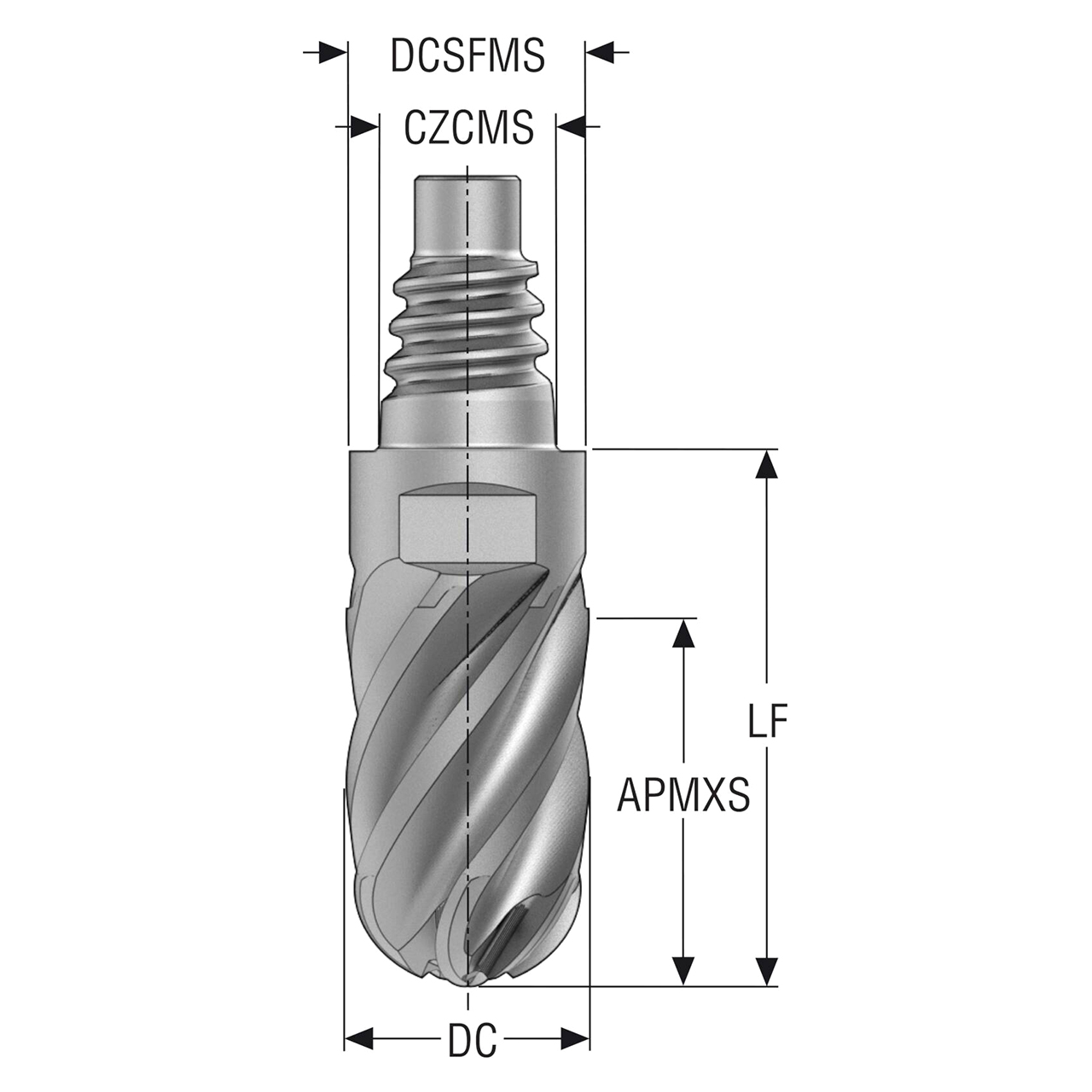

Product Specifications
| Manufacturer Part Number | 10138229 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter 1 (Decimal Inch) | 0.750" |
| Cutting Diameter 1 (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.728" |
| Contact Surface Diameter Machine Side (mm) | 18.50mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | -0.0024 |
| Lower Cutting Diameter Tolerance (mm) | -0.061 |
| Upper Cutting Diameter Tolerance (Decimal Inch) | -0.0016 |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.350" |
| Maximum Helical Interpolation Hole Diameter (mm) | 34.29mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.975" |
| Minimum Helical Interpolation Hole Diameter (mm) | 24.77mm |
| Corner Radius (Decimal Inch) | 0.375" |
| Corner Radius (mm) | 9.53mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.125" |
| Cutting Edge Effective Length (mm) | 28.58mm |
| Functional Length (Decimal Inch) | 1.524" |
| Functional Length (mm) | 38.70mm |
| Overall Length (Decimal Inch) | 2.291" |
| Overall Length (mm) | 58.20mm |
| Maximum Depth of Cut (mm) | 28.58mm |
| Maximum Depth of Cut (Decimal Inch) | 1.125" |
| Theoretical Cutting Edge Length (Decimal Inch) | 1.125" |
| Theoretical Cutting Edge Length (mm) | 28.58mm |
| Profile Radius (Decimal Inch) | 0.374" |
| Profile Radius (mm) | 9.50mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | XSB720 |
| Cutting Geometry Type Technical | XSB720 |
| Connection Size Code | E20 |
| Connection Size Code Machine Side | E20 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Orthogonal Angle (Degree) | 80 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 3 |
| Number of Flute | 6 |
| Pheripheral Cutting Edge Count | 6 |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | HXT |
| Product Type | Exchangeable Head Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Seco Tools
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
6
Corner Radius (Inch):
3/8"
Corner Radius (Decimal Inch):
0.3750"
Corner Radius (mm):
9.53mm
Shank Type:
0
Material:
Carbide
Finish/Coating:
HXT
Overall Length (Inch):
2-7/24"
Overall Length (Decimal Inch):
2.2913"
Overall Length (mm):
58.20mm
Cutting Direction:
Right Hand
interval quantity:
1
