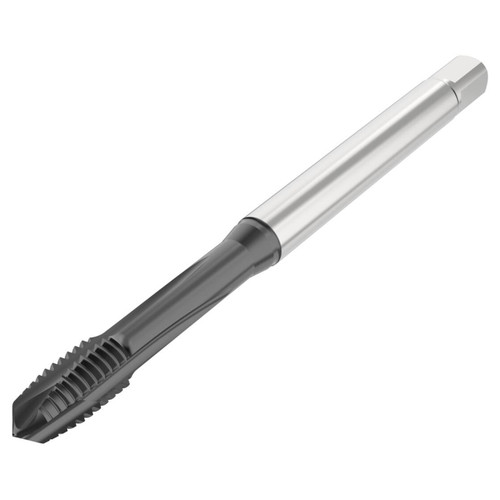

Seco Tools 10139383 | T34-PH04B03-2.5X0.45-64R EGM2.5 Thread Size x 0.121" Diameter x 0.138" Shank x 2.252" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

$64.31
Brand:
Seco Tools
Thread Size:
EGM2.5
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2520"
Overall Length (mm):
57.20mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+WC/C
Thread Standard:
EGM
interval quantity:
1
SKU:
17994259
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139383 | T34-PH04B03-2.5X0.45-64R EGM2.5 Thread Size x 0.121" Diameter x 0.138" Shank x 2.252" OAL 3 Flute TiAIN+WC/C Coated HSS-E-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number10139383
Thread Diameter (Decimal Inch)0.121"
Thread Diameter (mm)3.08mm
Threading Chamfer Length (Decimal Inch)0.084"
Threading Chamfer Length (mm)2.13mm
Tap Chamfer Length (Decimal Inch)0.084"
Tap Chamfer Length (mm)2.13mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.121"
Functional Length (mm)53.87mm
Usable Length (Decimal Inch)0.709"
Usable Length (mm)18.00mm
Overall Length (Decimal Inch)2.252"
Overall Length (mm)57.20mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeEGM2.5
Recommended Premachined Hole Diameter (Decimal Inch)0.104"
Recommended Premachined Hole Diameter (mm)2.65mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.106"
Maximum Premachined Hole Diameter (mm)2.70mm
Minimum Thread Pitch (Decimal Inch)0.018"
Minimum Thread Pitch (mm)0.45mm
Maximum Thread Pitch (Decimal Inch)0.018"
Maximum Thread Pitch (mm)0.45mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class6H mod
Threading Chamfer TypeB
Thread Form TypeEGM
Cutting DirectionRight Hand
Cutting Geometry TypeT34
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+WC/C
Product TypeStraight Flute Tap
