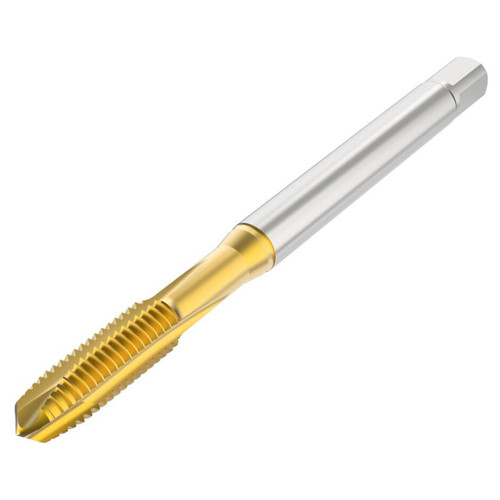

Seco Tools 10139452 | T32-PN08B03-4-40-21R UNC4-40 Thread Size x 0.112" Diameter x 0.138" Shank x 2.205" OAL 3 Flute TiAIN+TiN Coated HSS-E-PM Straight Flute Tap

$29.26
Brand:
Seco Tools
Thread Size:
UNC4-40
Overall Length (Inch):
2-8/39"
Overall Length (Decimal Inch):
2.2050"
Overall Length (mm):
56.00mm
Number of Flutes:
3
Material:
HSS-E-PM
Finish/Coating:
TiAIN+TiN
Thread Standard:
UNC
interval quantity:
1
SKU:
17994328
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Seco Tools 10139452 | T32-PN08B03-4-40-21R UNC4-40 Thread Size x 0.112" Diameter x 0.138" Shank x 2.205" OAL 3 Flute TiAIN+TiN Coated HSS-E-PM Straight Flute Tap

Product Specifications
Manufacturer Part Number10139452
Thread Diameter (Decimal Inch)0.112"
Thread Diameter (mm)2.85mm
Threading Chamfer Length (Decimal Inch)0.111"
Threading Chamfer Length (mm)2.81mm
Tap Chamfer Length (Decimal Inch)0.111"
Tap Chamfer Length (mm)2.81mm
Connection Diameter Machine Side (Decimal Inch)0.138"
Connection Diameter Machine Side (mm)3.50mm
Shank Diameter (Decimal Inch)0.138"
Shank Diameter (mm)3.50mm
Functional Length (Decimal Inch)2.094"
Functional Length (mm)53.19mm
Usable Length (Decimal Inch)0.709"
Usable Length (mm)18.00mm
Overall Length (Decimal Inch)2.205"
Overall Length (mm)56.00mm
Thread Length (Decimal Inch)0.394"
Thread Length (mm)10.00mm
Thread Diameter SizeUNC4-40
Recommended Premachined Hole Diameter (Decimal Inch)0.093"
Recommended Premachined Hole Diameter (mm)2.35mm
Connection Size Code3.50X2.70
Connection Size Code Machine Side3.50X2.70
Maximum Premachined Hole Diameter (Decimal Inch)0.094"
Maximum Premachined Hole Diameter (mm)2.39mm
Minimum Threads Per Inch (mm)40.00mm
Maximum Threads Per Inch (mm)40.00mm
Number of Flute3
Shank TypeCylindrical
Thread Tolerance Class2B
Threading Chamfer TypeB
Thread Form TypeUNC
Cutting DirectionRight Hand
Cutting Geometry TypeT32
Cutting Geometry Type TechnicalStraight with spiral point
MaterialHSS-E-PM
CoatingTiAIN+TiN
Product TypeStraight Flute Tap
